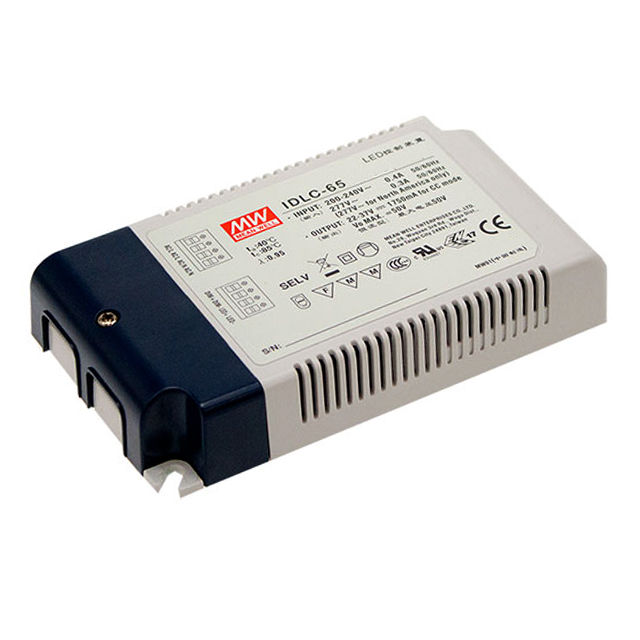

IDLC-65 Series

Catalog

LED DRIVER CC AC/DC 34-46V 1.4A

Part	Mounting Type	Features	Dimming	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Topology	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Current - Output (Max) [Max]	Termination Style	Voltage - Isolation	Number of Outputs	Type	Voltage - Input (Max) [Max]	Voltage - Output	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Standard Number
MEAN WELL USA Inc. IDLC-65-1400	Chassis Mount	SCP	Analog PWM	180 VAC	85 °C	-20 ░C	CB CCC CE cURus ENEC	64 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	86 %	1.4 A	Terminal Block	3750 VDC	1	Constant Current	295 VAC

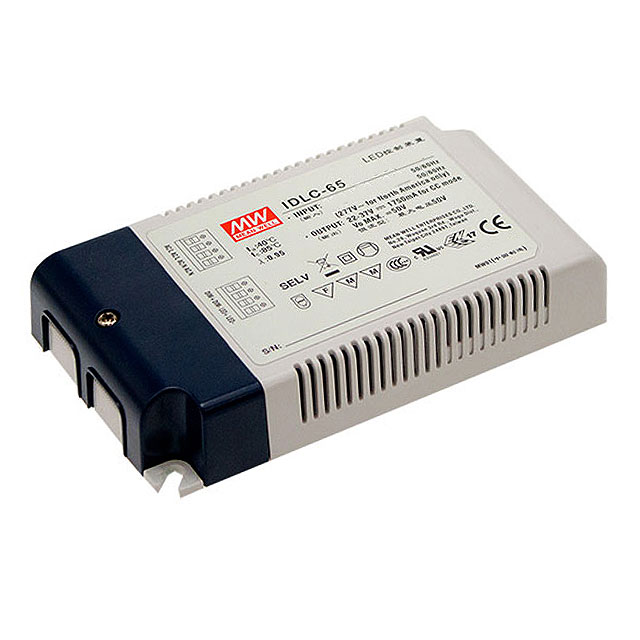

MEAN WELL USA Inc. IDLC-65-1050DA	Chassis Mount			180 VAC			CB CCC CE cURus EAC ENEC RCM	65 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in		1.05 A	Terminal Block		1	Constant Current	295 VAC	62 V	IP20

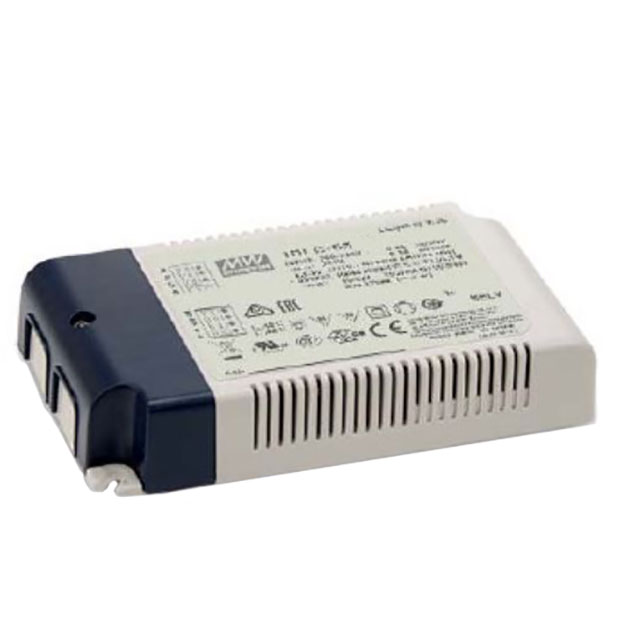

MEAN WELL USA Inc. IDLC-65-700DA	Chassis Mount	SCP	Analog PWM	180 VAC	85 °C	-20 ░C	CB CCC CE cURus EAC ENEC RCM	63 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	86 %	1.05 A	Terminal Block	3750 VDC	1	Constant Current	295 VAC			36 V	27 V	UL 8750

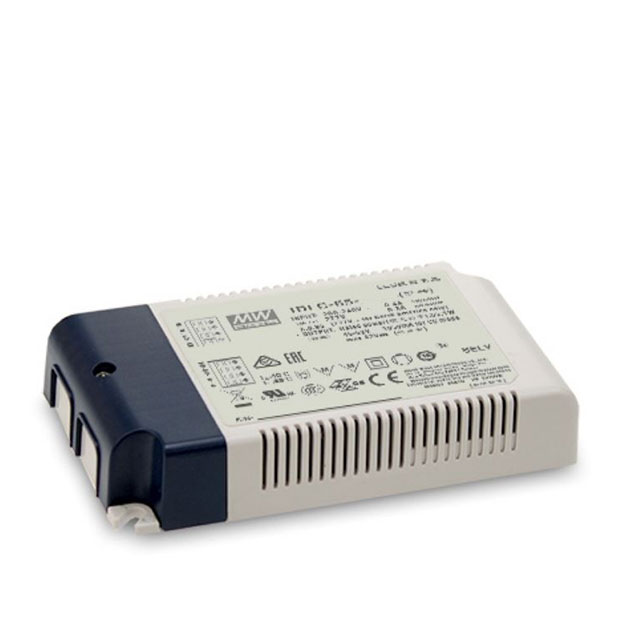

MEAN WELL USA Inc. IDLC-65-1400DA	Chassis Mount	SCP	DALI	180 VAC	85 °C	-20 ░C	CB CCC CE cURus EAC ENEC RCM	64 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	86 %	1.4 A	Terminal Block	3750 VDC	1	Constant Current	295 VAC			64 V	34 V
MEAN WELL USA Inc. IDLC-65-700	Chassis Mount	SCP	Analog PWM	180 VAC	85 °C	-20 ░C	CB CCC CE cURus ENEC	65 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	89 %	700 mA	Terminal Block	3750 VDC	1	Constant Current	295 VAC

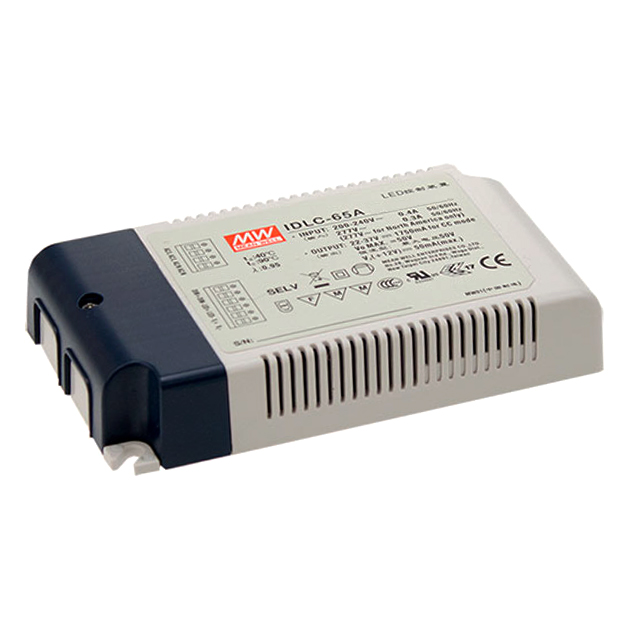

MEAN WELL USA Inc. IDLC-65A-1400	Chassis Mount	SCP	Analog PWM	180 VAC	85 °C	-20 ░C	CB CCC CE cURus ENEC	64 W	AC DC Converter	75 mm	2.95 "	25 mm	0.98 in	130 mm	5.12 in	86 %	1.4 A	Terminal Block	3750 VDC	1	Constant Current	295 VAC			64 V	34 V
