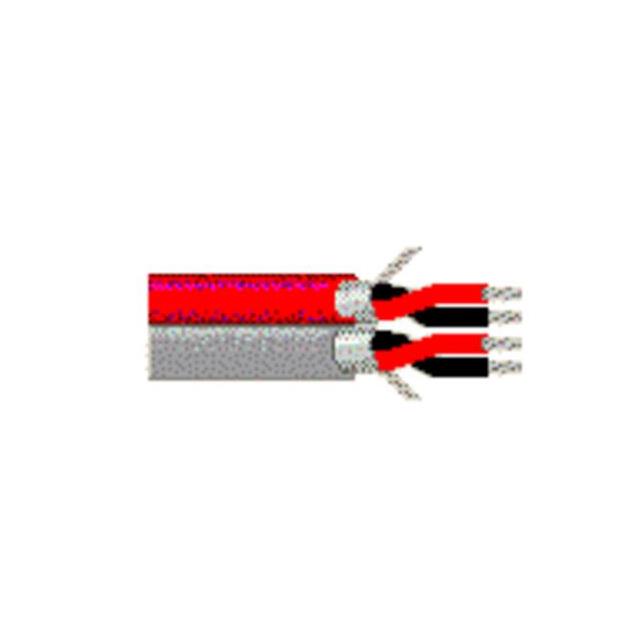

1504A Series
Manufacturer: Belden Inc.
Beta
⌘K
2 BOND #22 FS PR PVC FR
| Part | Shield Coverage | Shield Material | Number of Conductors | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Features | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Wire Gauge | Cable Type | Conductor Insulation | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 4 | 304.8 m | 1000 ft | 150 V | 7.26 mm | 0.286 in | Red | -30 ░C | 60 °C | Drain Wire | Audio Control | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 34 AWG | 19 | Copper Tinned | ||
Belden Inc. | 100 % | Aluminum Polyester | 4 | 304.8 m | 1000 ft | 150 V | 7.26 mm | 0.286 in | Red | -30 ░C | 60 °C | Drain Wire | Audio Control | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 34 AWG | 19 | Copper Tinned | ||
Belden Inc. | 100 % | Aluminum Polyester | 4 | 304.8 m | 1000 ft | 150 V | 7.26 mm | 0.286 in | Red | -30 ░C | 60 °C | Drain Wire | Audio Control | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 34 AWG | 19 | Copper Tinned | ||
Belden Inc. | 100 % | Aluminum Polyester | 4 | 150 V | 7.26 mm | 0.286 in | Red | -30 ░C | 60 °C | Drain Wire | Audio Control | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 34 AWG | 19 | Copper Tinned | 2000 ft | 609.6 m | ||
 Belden Inc. | 100 % | Aluminum Polyester | 4 | 304.8 m | 1000 ft | 150 V | 7.26 mm | 0.286 in | Red | -30 ░C | 60 °C | Drain Wire | Audio Control | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 34 AWG | 19 | Copper Tinned |
