S4B-XH-A Series

Catalog

CONN HEADER R/A 4POS 2.5MM

Part	Material Flammability Rating	Number of Rows	Contact Finish - Post	Connector Type	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Pitch - Mating	Pitch - Mating	Contact Type	Voltage Rating	Mounting Type	Contact Shape	Fastening Type	Insulation Material	Style	Number of Positions	Termination	Insulation Color	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Contact Material

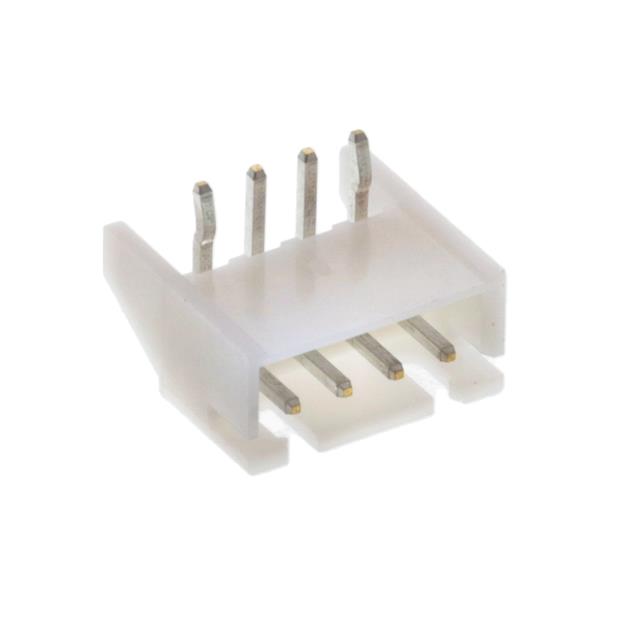

JST Sales America Inc. S4B-XH-A-1	UL94 V-0	1	Tin	Header	All	6.1 mm	0.24 in	85 °C	-25 °C	Shrouded - 4 Wall	2.5 mm	0.098 in	Male Pin	250 V	Right Angle Through Hole	Square	Detent Lock	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	4	Press-Fit Solder	Natural	3 A	0.134 "	3.4 mm	Brass

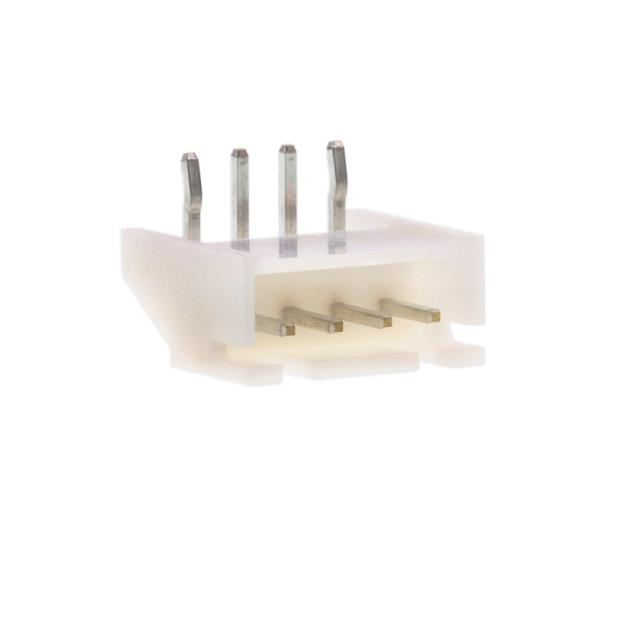

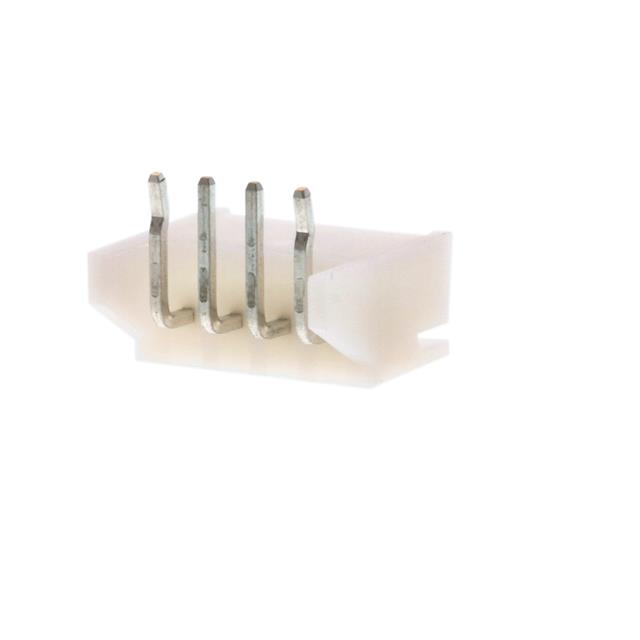

JST Sales America Inc. S4B-XH-A	UL94 V-0	1	Tin	Header	All	6.1 mm	0.24 in	85 °C	-25 °C	Shrouded - 4 Wall	2.5 mm	0.098 in	Male Pin	250 V	Right Angle Through Hole	Square	Detent Lock	Nylon 6/6 Polyamide (PA66)	Board to Cable/Wire	4	Press-Fit Solder	Natural	3 A	0.134 "	3.4 mm	Brass
