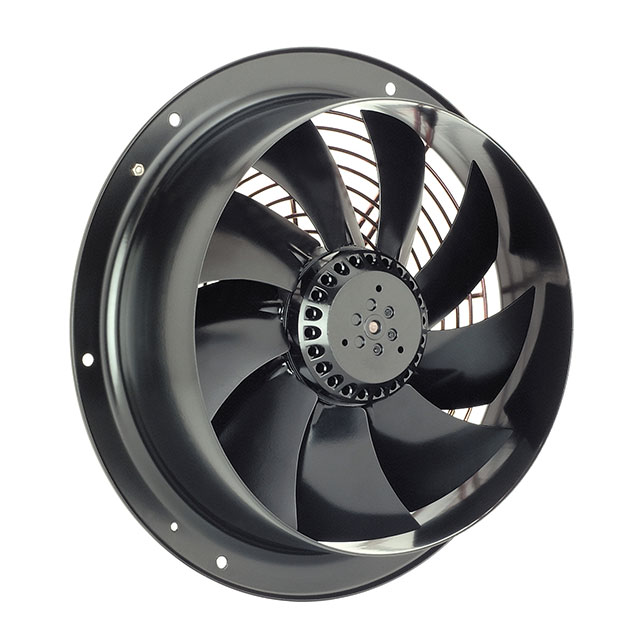

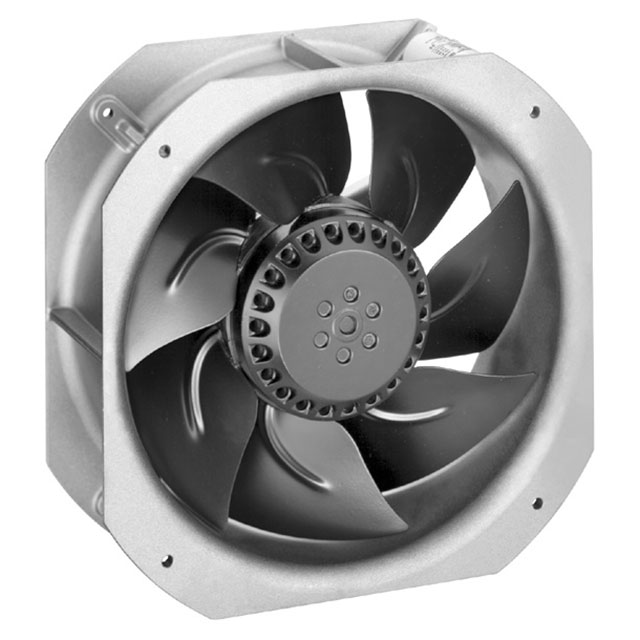

W2E200 Series

Catalog

FAN AXIAL

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Bearing Type	Size / Dimension	Size / Dimension [diameter]	Termination	Width [y]	Approval Agency	Ingress Protection	Features	Static Pressure	Static Pressure	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Weight	Weight	Size / Dimension [y]	Noise	Air Flow	Air Flow
ebm-papst Inc. W2E200-CF02-02	0.28 A	Steel	Steel	Ball	Round	280 mm	4 Wire Leads with Splice Terminals	86.2 mm	CE EAC	IP44	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	200 Pa	Tubeaxial	75 ░C	-25 °C	3120 RPM	230 VAC
ebm-papst Inc. W2E200-HK38-01A	0.35 A	Steel	Aluminum	Ball			Terminal Block	80 mm	CCC CE CSA EAC UL VDE	IP44	Capacitor Thermal Overload Protection (TOP)	0.381 in H2O	95 Pa	Tubeaxial	65 °C	-25 °C	2800 RPM	230 VAC	-25 °C	65 °C	80 W	225 mm	225 mm

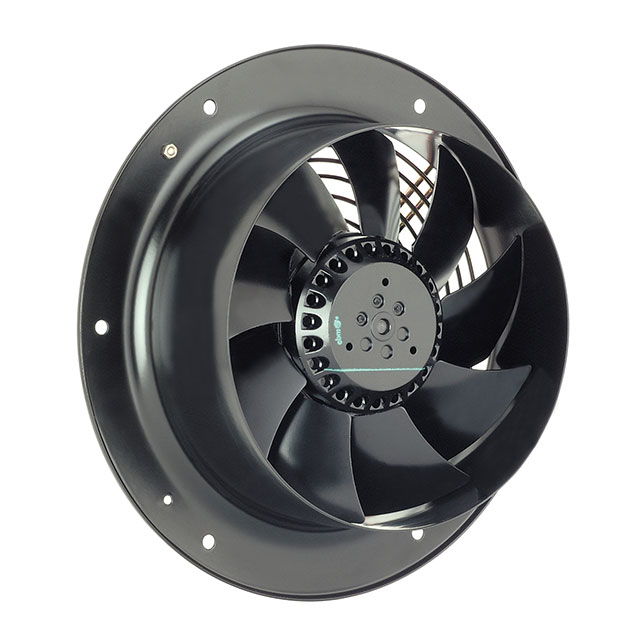

ebm-papst Inc. W2E200-CF02-01	0.28 A	Steel	Steel	Ball	Round	280 mm		80 mm	CCC CE EAC	IP44				Tubeaxial	75 ░C	-25 °C	3120 RPM	230 VAC						5.2 lbs	2.4 kg
ebm-papst Inc. W2E200-HH38-05	360 mA	Steel	Aluminum	Ball			Terminal Block	88.7 mm	CE CSA UL VDE	IP44	Capacitor Thermal Overload Protector (TOP)			Tubeaxial	65 °C	-25 °C	2800 RPM	230 VAC	-25 °C	65 °C		260 mm				260 mm

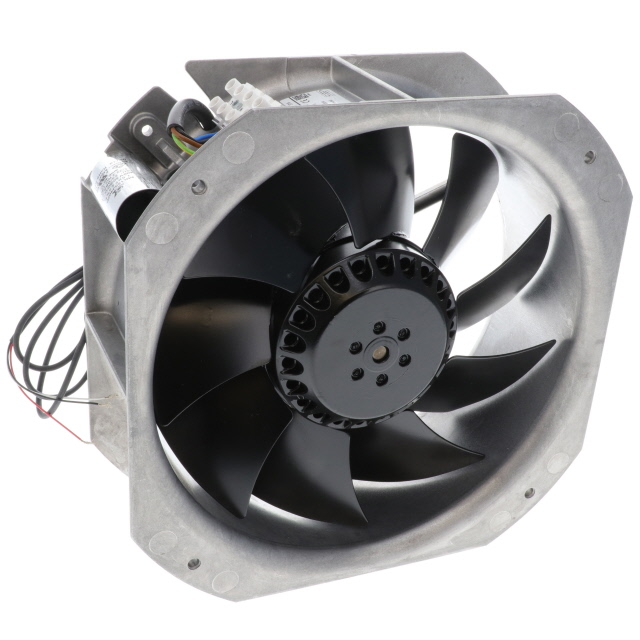

ebm-papst Inc. W2E200-HH38-13	360 mA	Steel	Aluminum	Ball			Terminal Block	80 mm	CCC CE CSA UL VDE	IP44	Capacitor Thermal Overload Protector (TOP)			Tubeaxial	65 °C	-25 °C	2800 RPM	230 VAC	-25 °C	65 °C		260 mm				260 mm
ebm-papst Inc. W2E200-HH86-01		Steel	Aluminum	Ball			Terminal Block	80 mm	CCC CE CSA EAC UL VDE					Tubeaxial			2800 RPM	115 VAC			80 W	225 mm	225 mm	4.7 lbs	2.1 kg		61 dB(A)	17 m³/min	607 CFM
ebm-papst Inc. W2E200-CI38-73	0.37 A	Steel	Steel	Ball	Round	280 mm	4 Wire Leads with Splice Terminals	89 mm	CE CSA UL	IP44	Capacitor Thermal Overload Protector (TOP)	0.602 in H2O	150 Pa	Tubeaxial	65 °C	-25 °C	2900 RPM	230 VAC	-25 °C	65 °C	83 W
ebm-papst Inc. W2E200-CH38-70		Steel		Ball	Round	280 mm	2 Wire Leads	80 mm	CSA UL VDE					Tubeaxial				230 VAC			77 W			3.1 lbs	1.4 kg		62 dB(A)	16.8 mł/min	600 CFM
