8457 Series

Catalog

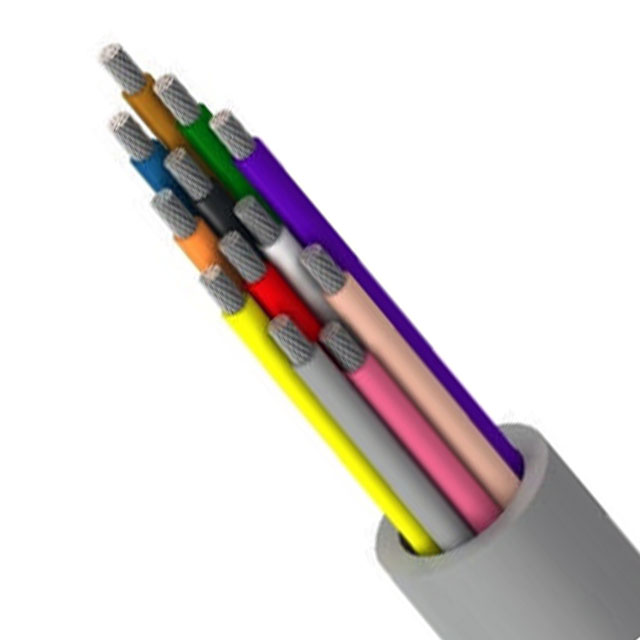

CABLE 12COND 22AWG CHROMEE

Part	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Usage	Ratings	Jacket (Insulation) Material
Belden Inc. 8457 0601000	304.8 m	1000 ft	0.813 mm	0.032 in	22 AWG	Chrome	12	30 AWG	7	0.272 in	6.91 mm	Multi-Conductor	Copper Tinned	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	UL Style 2576	Poly-Vinyl Chloride (PVC)

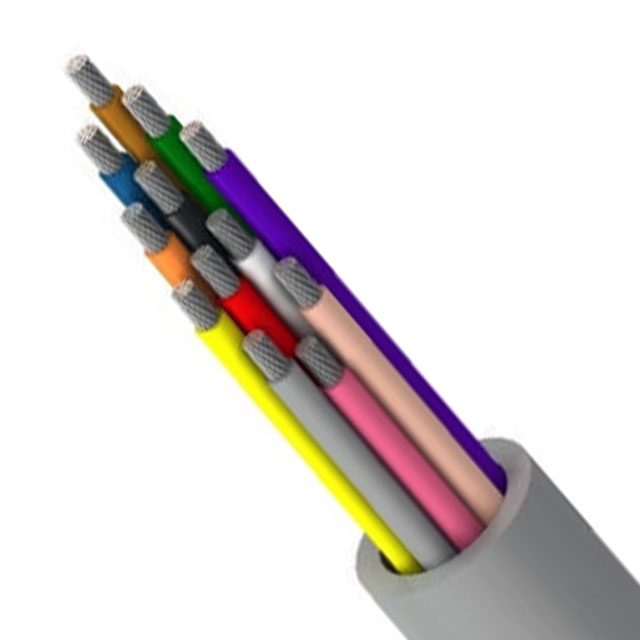

Belden Inc. 8457 060U500	152.4 m	500 ft	0.813 mm	0.032 in	22 AWG	Chrome	12	30 AWG	7	0.272 in	6.91 mm	Multi-Conductor	Copper Tinned	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	UL Style 2576	Poly-Vinyl Chloride (PVC)
Belden Inc. 8457 060500	152.4 m	500 ft	0.813 mm	0.032 in	22 AWG	Chrome	12	30 AWG	7	0.272 in	6.91 mm	Multi-Conductor	Copper Tinned	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	UL Style 2576	Poly-Vinyl Chloride (PVC)
