NRPN182 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2MM

Part	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post	Termination	Mounting Type	Number of Rows [custom]	Material Flammability Rating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Voltage Rating	Insulation Material	Contact Type	Connector Type	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Style	Features	Insulation Height	Insulation Height
Sullins Connector Solutions NRPN182PAEN-RC	Flash	2 mm	0.079 in	2 A	0.33 in	8.38 mm	36	2 mm	0.079 in	Brass	Flash	All	0.11 in	2.79 mm	Solder	Through Hole	2	UL94 V-0	Gold	0.141 in	3.6 mm	0.079 "	2 mm	Push-Pull	Square	150 VDC	Nylon 6T Polyamide (PA6T)	Male Pin	Header	Black	Gold	-40 C	105 ░C	Unshrouded	Board to Board Cable

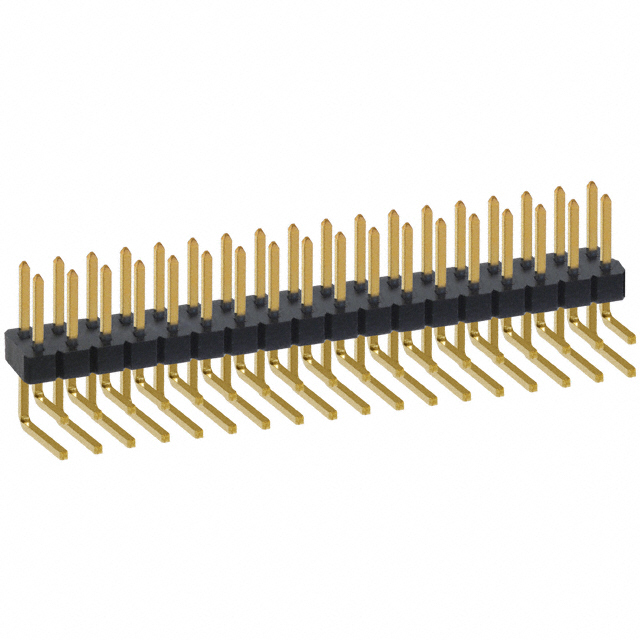

Sullins Connector Solutions NRPN182PARN-RC	Flash	4 mm	0.157 in	2 A			36	2 mm	0.079 in	Brass	Flash	All	0.11 in	2.79 mm	Solder	Right Angle Through Hole	2	UL94 V-0	Gold	0.141 in	3.6 mm	0.079 "	2 mm	Push-Pull	Square	150 VDC	Nylon 6T Polyamide (PA6T)	Male Pin	Header	Black	Gold	-40 C	105 ░C	Unshrouded	Board to Board Cable
Sullins Connector Solutions NRPN182MAMP-RC	Flash			2 A			36	2 mm	0.079 in	Brass	Flash	All			Solder	Surface Mount	2	UL94 V-0	Gold	0.141 in	3.6 mm	0.079 "	2 mm	Push-Pull	Square	150 VDC	Nylon 6T Polyamide (PA6T)	Male Pin	Header		Gold	-40 C	105 ░C	Unshrouded	Board to Board Cable	Board Guide	0.059 in	1.5 mm
