M2018SD Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]	Illumination	Features	Actuator Type	Circuit	Current Rating (Amps)	Mounting Type	Bushing Thread	Bushing Thread	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Ingress Protection	Actuator Length [x]
NKK Switches M2018SD4G02	Brass Chrome Plated	50000 Cycles	6.5 mm	Non-Illuminated	Epoxy Sealed Terminals	Standard Round	SPDT	0.4 VA	Panel Mount	0.75	M6	28 V	28 V	85 °C	-30 ░C	Quick Connect - 0.062" (1.5mm)	Mom-Off-Mom
NKK Switches M2018SD3G01-BC	Brass Chrome Plated	50000 Cycles	6.5 mm	Non-Illuminated	Red Cap	Standard Round with Cap	SPDT	0.4 VA	Panel Mount		1/4-40	28 V	28 V	85 °C	-30 ░C	Solder Lug	Mom-Off-Mom	IP67 - Dust Tight Waterproof	13.5 mm
NKK Switches M2018SD8G01	Brass Chrome Plated	25000 Steps	6.5 mm	Non-Illuminated	Epoxy Sealed Terminals	Standard Round	SPDT	0.4 VA	Panel Mount	0.75	M6	28 V	28 V	85 °C	-30 ░C	Solder Lug	Mom-Off-Mom	IP67 - Dust Tight Waterproof

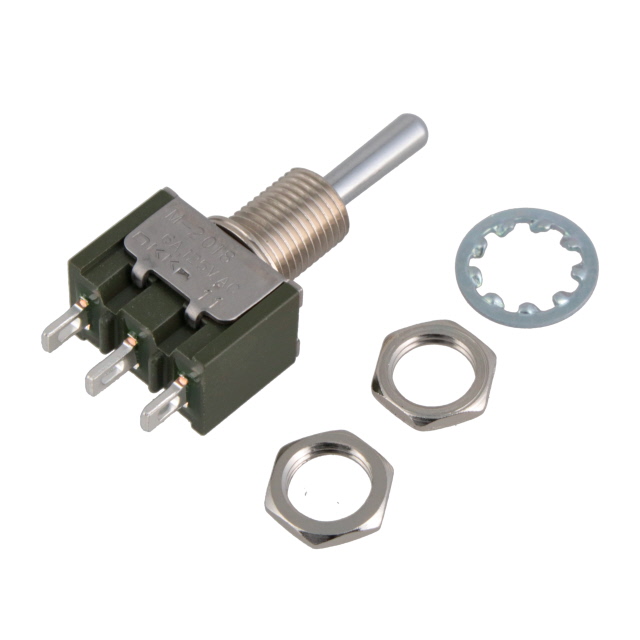

NKK Switches M2018SD1W01	Brass Chrome Plated	25000 Steps	6.5 mm	Non-Illuminated	Epoxy Sealed Terminals	Standard Round	SPDT	3 A 6 A	Panel Mount		1/4-40	125 V	30 V	85 °C	-30 ░C	Solder Lug	Mom-Off-Mom
NKK Switches M2018SD3W01	Brass Chrome Plated	25000 Steps	6.5 mm	Non-Illuminated	Epoxy Sealed Terminals	Standard Round	SPDT	3 A 6 A	Panel Mount		1/4-40	125 V	30 V	85 °C	-30 ░C	Solder Lug	Mom-Off-Mom	IP67 - Dust Tight Waterproof
NKK Switches M2018SD3G01	Brass Chrome Plated	50000 Cycles	6.5 mm	Non-Illuminated	Epoxy Sealed Terminals	Standard Round	SPDT	0.4 VA	Panel Mount		1/4-40	28 V	28 V	85 °C	-30 ░C	Solder Lug	Mom-Off-Mom	IP67 - Dust Tight Waterproof
