29670 Series
Manufacturer: Phoenix Contact
Catalog

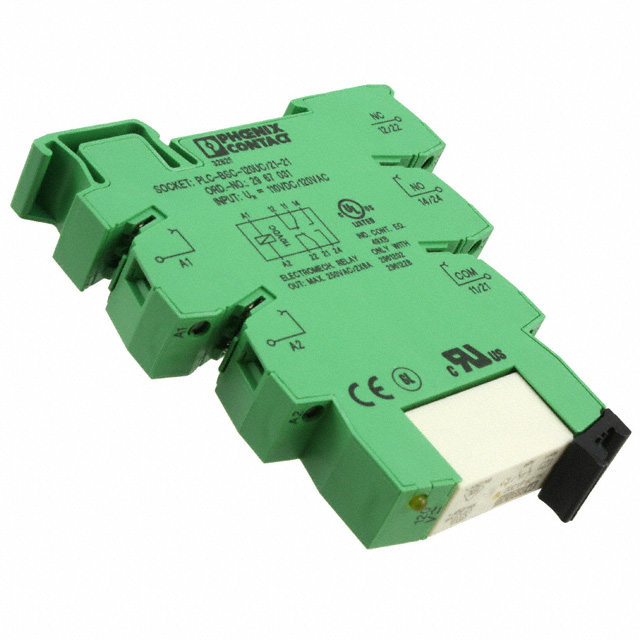

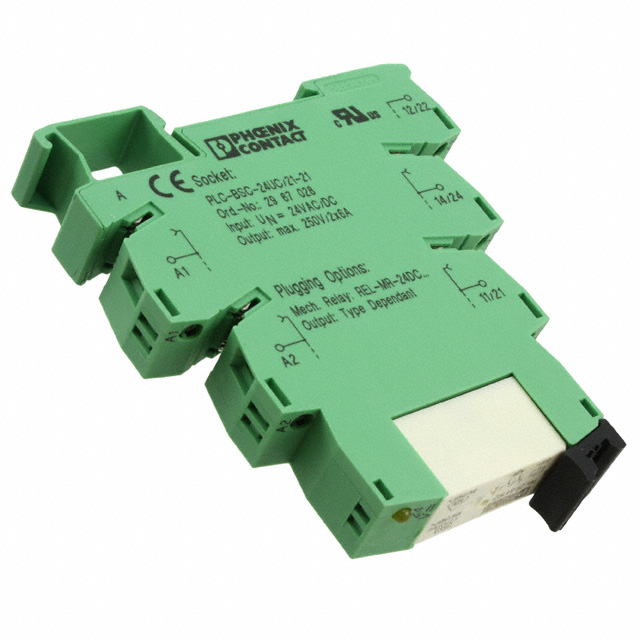

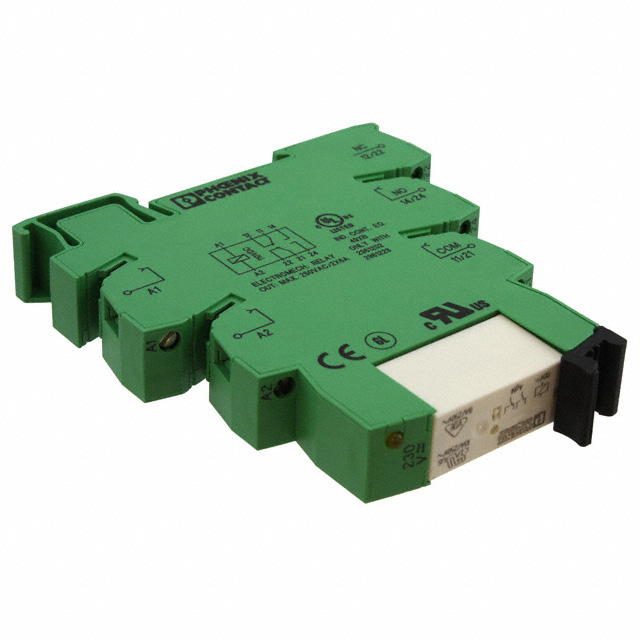

RELAY GEN PURPOSE DPDT 6A 120V
| Part | Coil Resistance | Switching Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Material | Relay Type | Mounting Type | Approval Agency | Release Time | Contact Form | Coil Type | Contact Rating (Current) | Coil Current | Features | Termination Style | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 26.66 kOhms | 250 VAC 250 VDC | 7 ms | 60 °C | -40 C | 120VAC/DC | Silver Nickel (AgNi) | General Purpose | DIN Rail | CE UKCA | 10 ms | DPDT (2 Form C) | Non Latching | 6 A | 4.5 mA | Lighted Indicator Socket Included | Screw Terminal | |
 Phoenix Contact | 1440 Ohms | 250 VAC 250 VDC | 8 ms | 60 °C | -40 C | Silver Nickel (AgNi) | General Purpose | DIN Rail | CE UKCA | 10 ms | DPDT (2 Form C) | Non Latching | 6 A | 18 mA | Lighted Indicator Socket Included | Screw Terminal | 24 VDC | |
 Phoenix Contact | 1371 Ohms | 250 VAC 250 VDC | 8 ms | 60 °C | -40 C | Silver Nickel (AgNi) | General Purpose | DIN Rail | CE UKCA | 10 ms | DPDT (2 Form C) | Non Latching | 6 A | 17.5 mA | Lighted Indicator Socket Included | Screw Terminal | 24 VAC |
