AWH 10G Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Style	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Number of Positions	Connector Type	Contact Material	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Features	Contact Type	Current Rating (Amps)	Insulation Material	Mounting Type	Contact Finish Thickness - Mating	Pitch	Pitch	Row Spacing	Row Spacing	Contact Finish	Color	Wire Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness

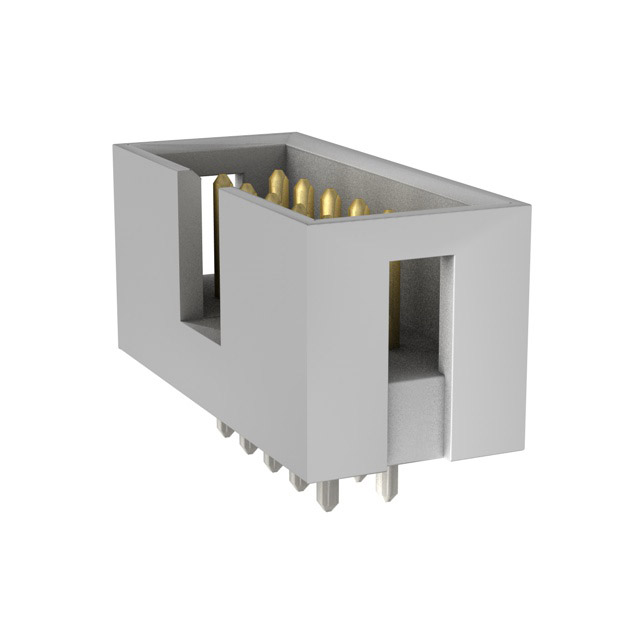

Assmann WSW Components AWH 10G-0202-T	Board to Cable/Wire	Tin	Gold	-40 C	105 ░C	Square	UL94 V-0	10	Header	Brass	2	17 mm	0.669 in	0.13 "	3.3 mm	All	Push-Pull	Gray	0.1 in	2.54 mm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	Keying Slot	Male Pin	3 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Flash

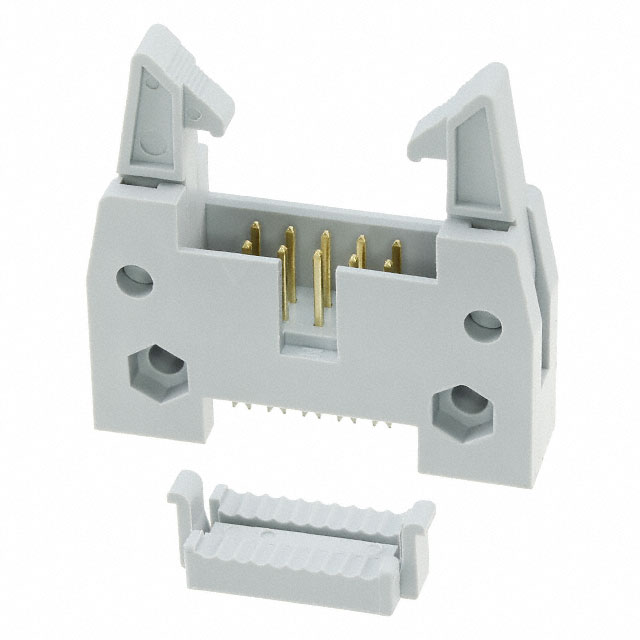

Assmann WSW Components AWH 10G-0232-IDC								10	Header		2						Latch Lock/Eject Hooks Long								Feed Through	Male Pin			Free Hanging (In-Line)		0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	Gray	Ribbon Cable	IDC
Assmann WSW Components AWH 10G-0222-T	Board to Cable/Wire	Tin	Gold	-40 C	105 ░C	Square	UL94 V-0	10	Header	Brass	2	17 mm	0.669 in	0.13 "	3.3 mm	All	Latch Lock/Eject Hooks	Gray	0.1 in	2.54 mm	Shrouded - 4 Wall	Solder	0.1 "	2.54 mm	Keying Slot	Male Pin	3 A	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	Flash

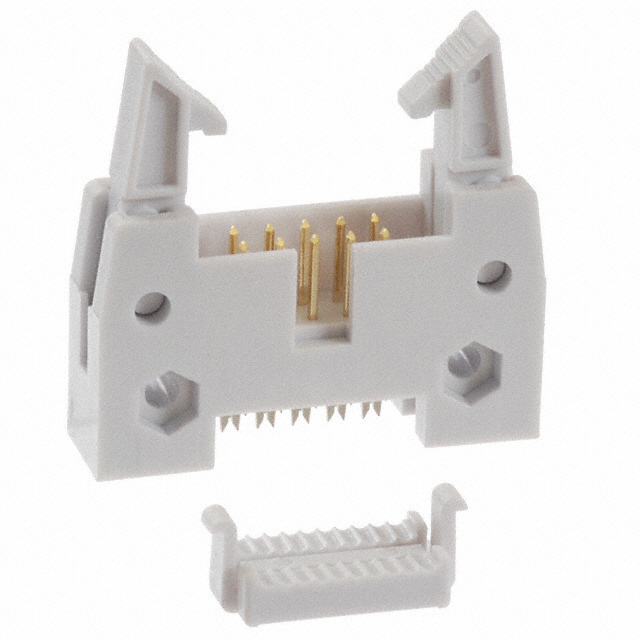

Assmann WSW Components AWH10G-0232-IDC-R								10	Header		2						Latch Lock/Eject Hooks Long								Feed Through	Male Pin			Free Hanging (In-Line)		0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	Gray	Ribbon Cable	IDC

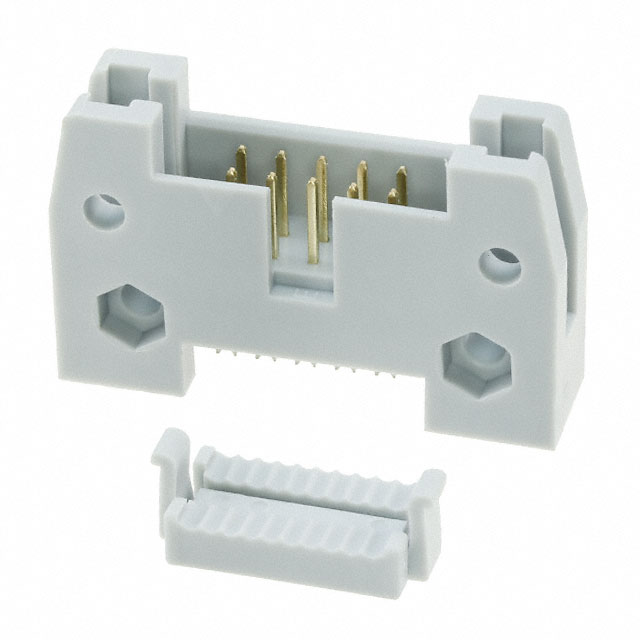

Assmann WSW Components AWH 10G-0202-IDC								10	Header		2														Feed Through Polarizing Key	Male Pin			Free Hanging (In-Line) Right Angle		0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	Gray	Ribbon Cable	IDC	0.025 µm	1 µin
