EAHE2835 Series

Catalog

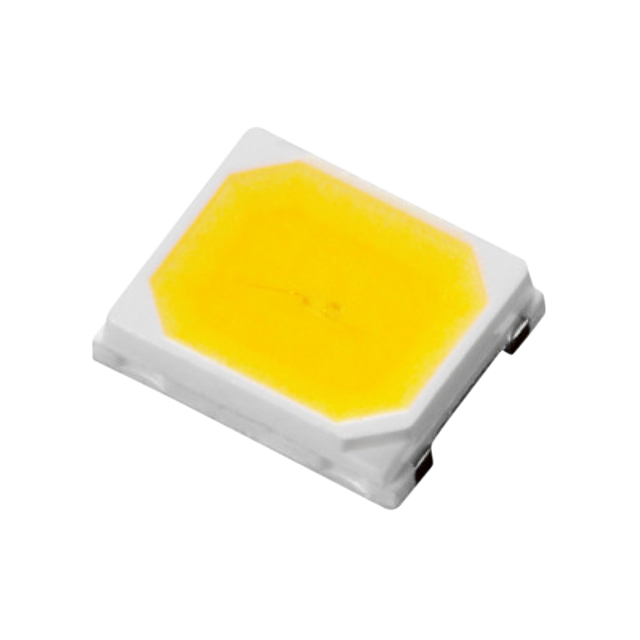

LED COOL WHITE 5000K 2PLCC

Part	Thermal Resistance of Package	CCT (K)	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test	Current - Max [Max]	CRI (Color Rendering Index)
Everlight Electronics Co Ltd EAHE2835WD43	30 °C/W	5000 K	34 lm	0.033 in	0.85 mm	Cool White	2-PLCC	Surface Mount	2.85 V	3528 Metric	1411	184 lm/W	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °	65 mA	180 mA	80
Everlight Electronics Co Ltd EAHE2835WD13	30 °C/W	3000 K	34 lm	0.033 in	0.85 mm	Warm White	2-PLCC	Surface Mount	2.85 V	3528 Metric	1411	184 lm/W	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °	65 mA	180 mA	80
Everlight Electronics Co Ltd EAHE2835WD03	30 °C/W	2700 K	34 lm	0.033 in	0.85 mm	Warm White	2-PLCC	Surface Mount	2.85 V	3528 Metric	1411	184 lm/W	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °	65 mA	180 mA	80
Everlight Electronics Co Ltd EAHE2835WD63	30 °C/W	6500 K	34 lm	0.033 in	0.85 mm	Cool White	2-PLCC	Surface Mount	2.85 V	3528 Metric	1411	184 lm/W	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °	65 mA	180 mA	80
Everlight Electronics Co Ltd EAHE2835WD33	30 °C/W	4000 K	34 lm	0.033 in	0.85 mm	Neutral White	2-PLCC	Surface Mount	2.85 V	3528 Metric	1411	184 lm/W	3.5 mm	0.11 "	2.8 mm	0.138 in	120 °	65 mA	180 mA	80
