KAE01 Series
Manufacturer: E-Switch
Beta
⌘K
DIP / SIP SWITCH, 1 CIRCUITS, SLIDE, THROUGH HOLE, SPST, 24 V, 25 MA
| Part | Length | Length | Mechanical Life | Electrical Life | Height Above Board | Height Above Board | Actuator Type | Circuit | Contact Finish | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Voltage Rating | Number of Positions | Mounting Type | Actuator Level | Contact Material | Current Rating (Amps) | Washable | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

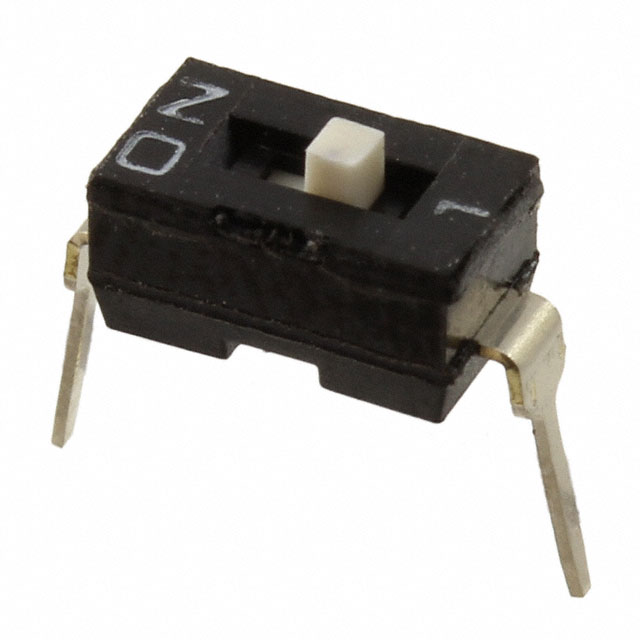

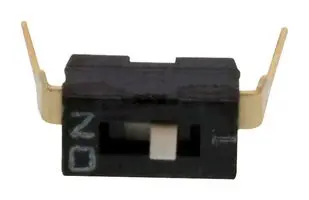

 E-Switch | 3.58 mm | 0.141 in | 2000 Cycles | 2000 Steps | 0.169 in | 4.3 mm | Slide (Standard) | SPST | Gold | PC Pin | 85 °C | -20 ░C | 2.54 mm | 0.1 " | 24 VDC | 1 | Through Hole | Raised | Copper | 25 mA | |||

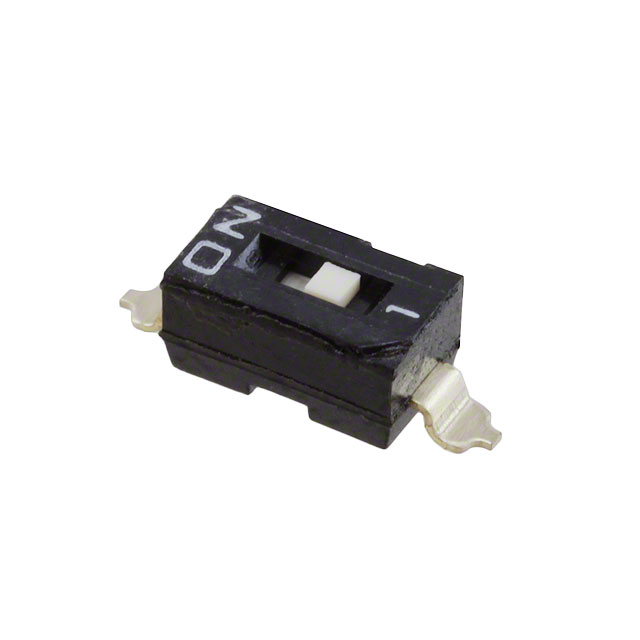

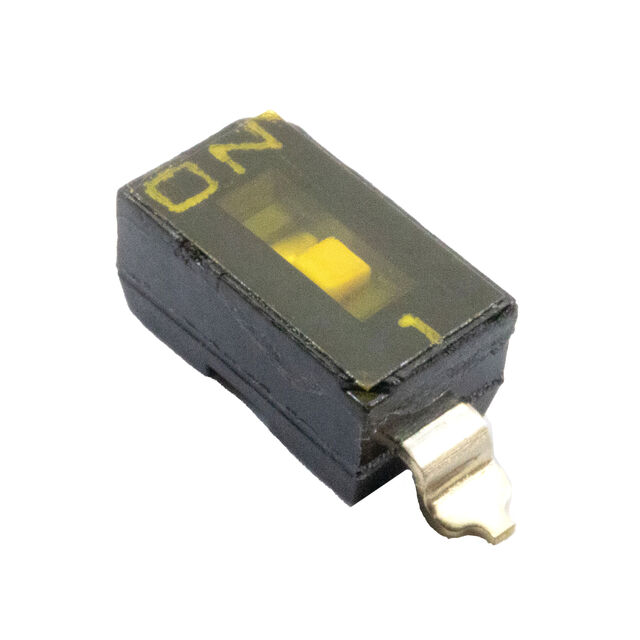

 E-Switch | 3.58 mm | 0.141 in | 2000 Cycles | 2000 Steps | Slide (Standard) | SPST | Gold | Gull Wing | 85 °C | -20 ░C | 2.54 mm | 0.1 " | 24 VDC | 1 | Surface Mount | Flush Recessed | Copper | 25 mA | 0.148 in | 3.75 mm |
