1337476 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

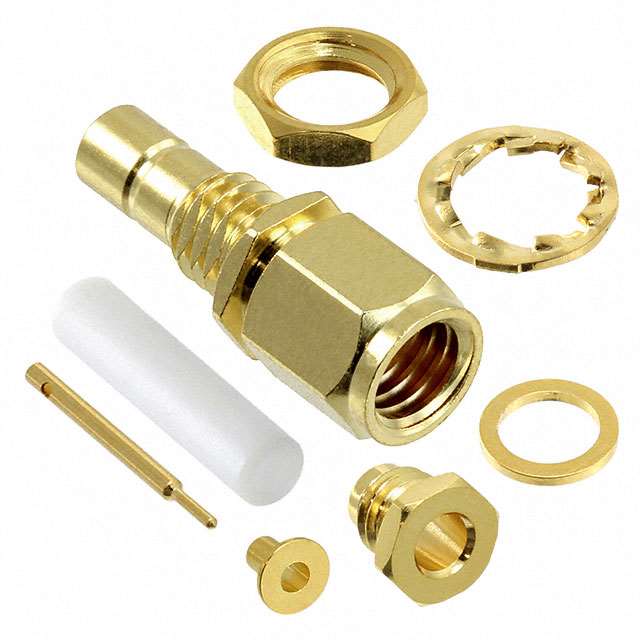

CONN SMB JACK STR 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Insertion Loss | Dielectric Material | Includes | Body Finish | Mating Cycles | Body Material | Mounting Feature | Housing Color | Fastening Type | Mounting Type | Connector Type | Number of Ports | Cable Group | Center Contact Material | Connector Style | Contact Termination | Frequency - Max [Max] | Shield Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 250 V | Gold | 0.3 dB | Polytetrafluoroethylene (PTFE) | 1 Clamp 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut 1 Washer | Gold | 500 | Brass | Bulkhead - Front Side Nut | Gold | Snap-On | Panel Mount | Jack Male Pin | 1 | 188A 316 RG-174A | Brass | SMB | Solder | 4 GHz | Clamp | 50 Ohms |
