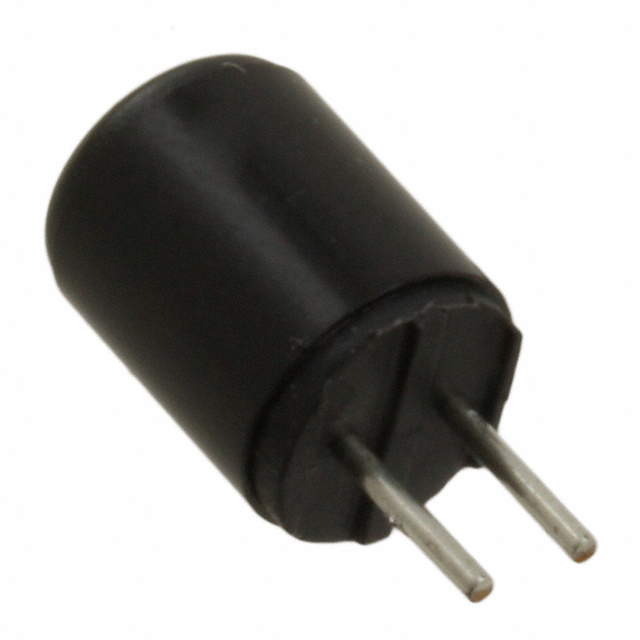

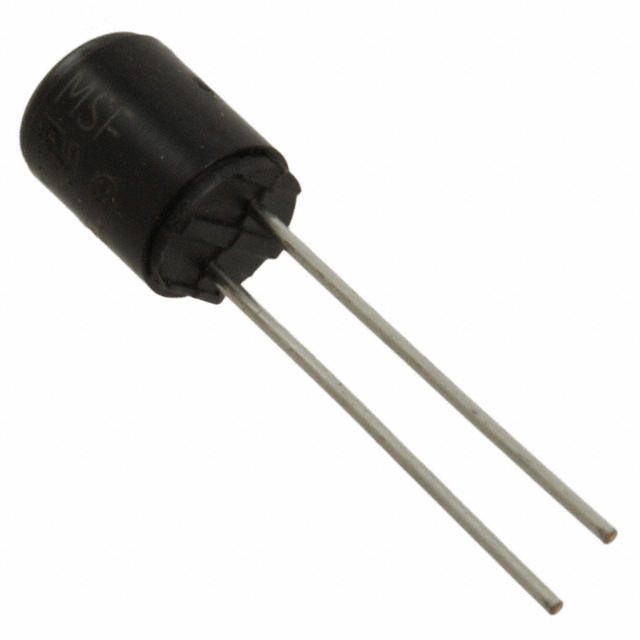

MSF 125 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSES WITH LEADS - THROUGH HOLE MSF 125 FUSE 2A F
| Part | Voltage Rating - AC | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Mounting Type | Response Time | Current Rating (Amps) | Melting I˛t | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Voltage Rating - DC | Melting I²t | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. | 125 V | 0.346 in | 8.8 mm | 6.4 mm | 0.252 in | Can Radial | Through Hole | Fast Blow | 2 A | |||||||
 SCHURTER Inc. | 125 V | 0.346 in | 8.8 mm | 6.4 mm | 0.252 in | Can Radial | Through Hole | Fast Blow | 0.125 Amps | 0.0015 | 85 °C | -25 °C | Board Mount (Cartridge Style Excluded) | 125 VDC | 0.0015 | 100 A |
 SCHURTER Inc. | 125 V | 0.346 in | 8.8 mm | 6.4 mm | 0.252 in | Can Radial | Through Hole | Fast Blow | 0.71 A | 85 °C | -25 °C | Board Mount (Cartridge Style Excluded) | 125 VDC | 0.045 I²t | 100 A | |
SCHURTER Inc. | 125 V | 0.346 in | 8.8 mm | 6.4 mm | 0.252 in | Can Radial | Through Hole | Fast Blow | 100 mA | 85 °C | -25 °C | Board Mount (Cartridge Style Excluded) | 125 VDC | 0.0007 | 100 A | |
SCHURTER Inc. | 125 V | 0.346 in | 8.8 mm | 6.4 mm | 0.252 in | Can Radial | Through Hole | Fast Blow | 1.6 A | 85 °C | -25 °C | Board Mount (Cartridge Style Excluded) | 125 VDC | 0.29 | 100 A |
