NUF8410 Series

EMI Filter, 8-Channel, with Integrated ESD Protection

Catalog

EMI Filter, 8-Channel, with Integrated ESD Protection

Part	Center / Cutoff Frequency	Applications	Package / Case	Technology	Mounting Type	Values	Filter Order	Number of Channels	Attenuation Value	Type	Resistance - Channel (Ohms)	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	ESD Protection	Operating Temperature [Max]	Operating Temperature [Min]

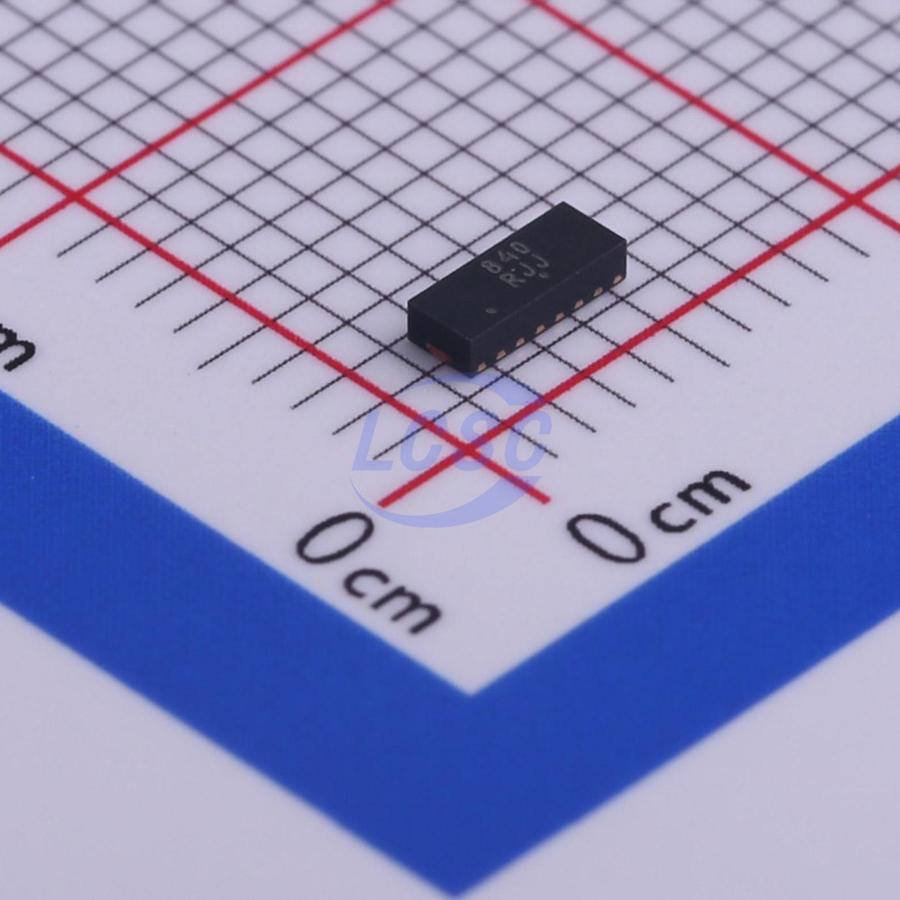

ON Semiconductor NUF8410MNT4G	250 MHz	Data Lines for Mobile Devices	16-VFDFN Exposed Pad	RC (Pi)	Surface Mount	8.5 pF 100 Ohms	2nd	8	-20 dB	Low Pass	100 Ohms	0.039 in	1 mm	0.157 "	0.063 in	4 mm	1.6 mm		85 °C	-40 °C

Catalog

EMI Filter, 8-Channel, with Integrated ESD Protection

Key Features

• EMI Filtering and ESD Protection

• Integration of 40 Discrete Components

• Compliance with IEC61000-4-2 (Level 4) > 8 kV (Contact)

• DFN Package, 1.6 x 4.0 mm

• Moisture Sensitivity Level 1

• ESD Ratings: Machine Model = C, Human Body Model = 3B

• This is a Pb-Free Device

Description

This device is an 8 line EMI Filter array for wireless applications. Greater than -20 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. It also offers ESD protection-clamping transients from static discharges. ESD protection is provided across all capacitors.
