746-068 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 68POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Pitch	Pitch	Color	Mounting Type	Contact Material	Read Out	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions/Bay/Row
EDAC Inc. 746-068-545-601	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit Wire Wrap	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-553-201	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit Wire Wrap	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-527-206	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-545-206	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit Wire Wrap	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-527-606	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-553-206	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit Wire Wrap	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-560-201	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever Make Before Break	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34

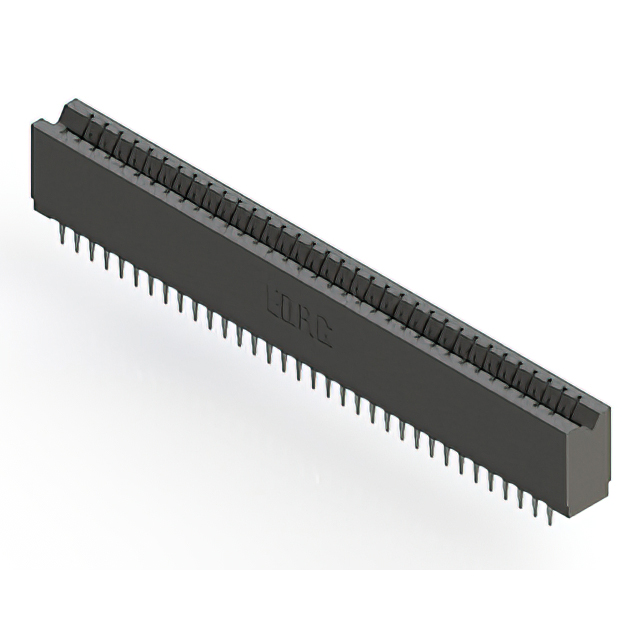

EDAC Inc. 746-068-520-206	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34

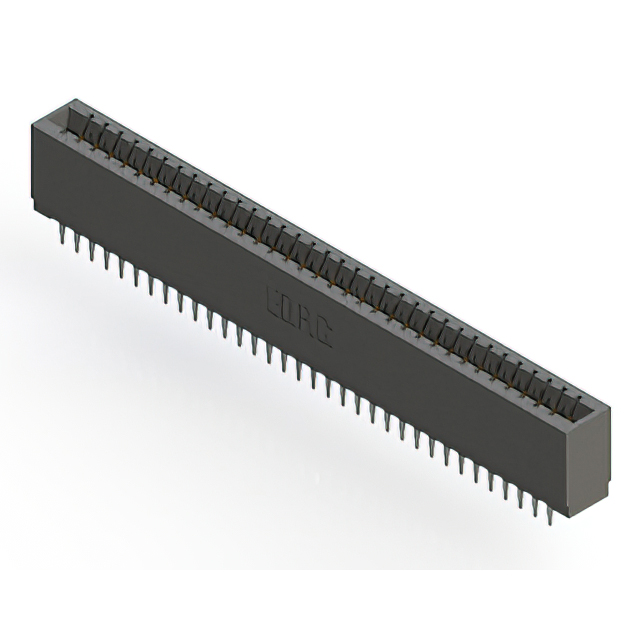

EDAC Inc. 746-068-525-201	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
EDAC Inc. 746-068-525-206	2	Polyester Thermoplastic	68 positions	2	-40 C	105 ░C	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	Through Hole	Copper Alloy	Dual	Press-Fit	Cantilever	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	34
