RP330 Series

Catalog

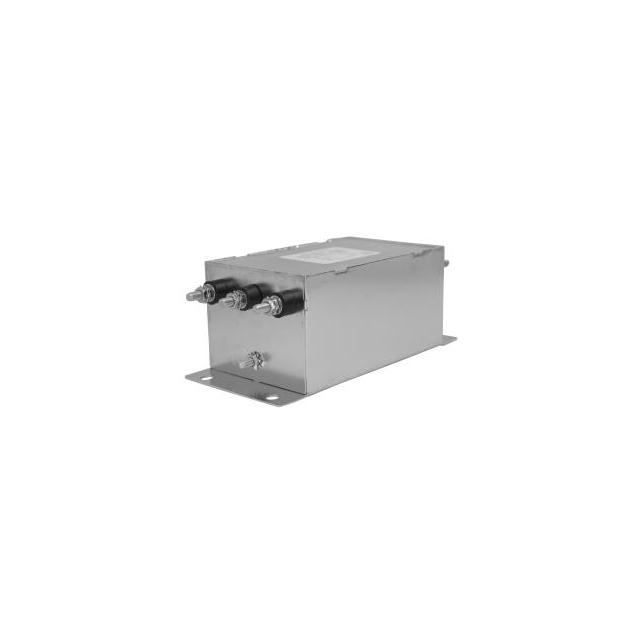

LINE FILTER 480VAC 250A CHASSIS

...

Part	Voltage - Rated AC	Termination Style	Mounting Type	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration
Astrodyne TDI RP330-250-10-S	480 V	Threaded Post	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	250 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-80-2000-W	480 V	Wire Leads	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	80 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-200-2000-C	480 V	Terminal Block	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	200 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-16-10-S	480 V	Threaded Post (M5)	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	16 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-25-0-C	480 V	Terminal Block	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	25 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-25-0-S	480 V	Threaded Post (M5)	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	25 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-25-100-W	480 V	Wire Leads	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	25 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-80-2000-S	480 V	Threaded Post (M6)	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	80 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-150-100-C	480 V	Terminal Block	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	150 A	60 Hz	50 Hz	Two Stage
Astrodyne TDI RP330-80-100-S	480 V	Threaded Post (M6)	Chassis Mount	Three Phase (Delta)	3.5 kV	CE CSA cURus ENEC SEMKO	100 °C	-25 °C	General Purpose	80 A	60 Hz	50 Hz	Two Stage
