842-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Color	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Number of Positions/Bay/Row	Termination	Number of Rows [custom]	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 842-072-558-201	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Right Angle Through Hole	Cantilever	36	Solder	2	72
EDAC Inc. 842-072-540-203	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Through Hole	Cantilever	36	Wire Wrap	2	72	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 842-072-523-212	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Through Hole	Cantilever	36	Solder	2	72	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm

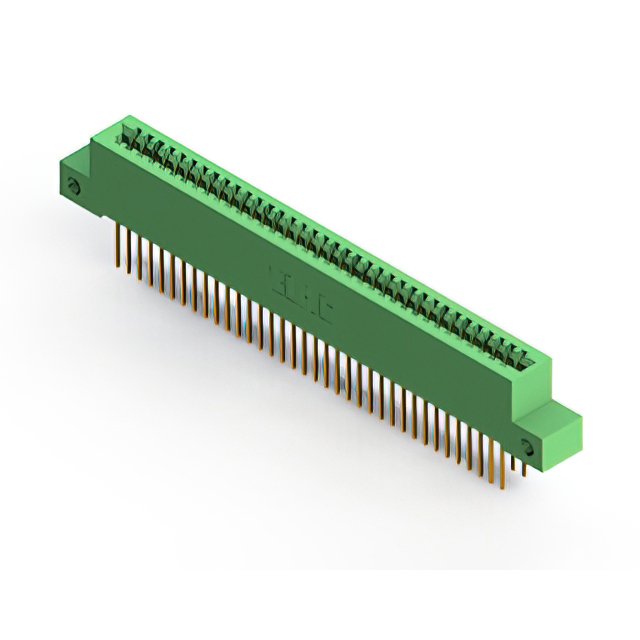

EDAC Inc. 842-072-540-212	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Through Hole	Cantilever	36	Wire Wrap	2	72	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
EDAC Inc. 842-072-559-203	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Right Angle Through Hole	Cantilever	36	Solder	2	72	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 842-072-560-203	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Board Edge Straddle Mount	Cantilever	36	Solder	2	72	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Card Extender

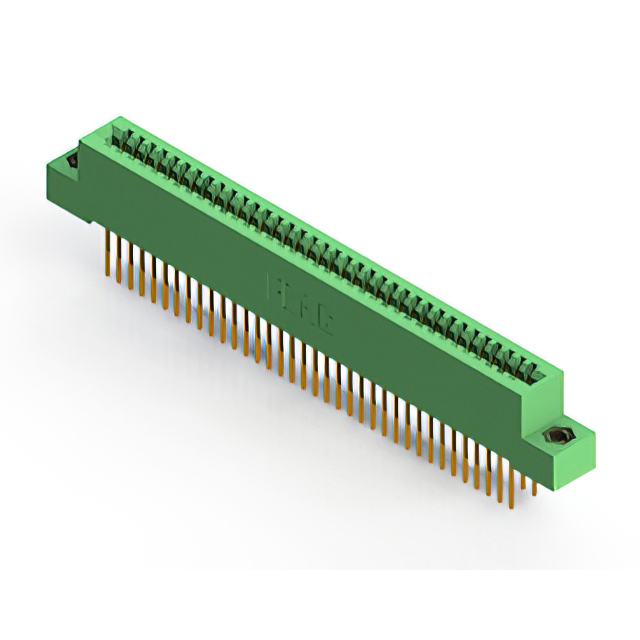

EDAC Inc. 842-072-523-207	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Through Hole	Cantilever	36	Solder	2	72		Flush Mount M3 Threaded Insert Top Opening

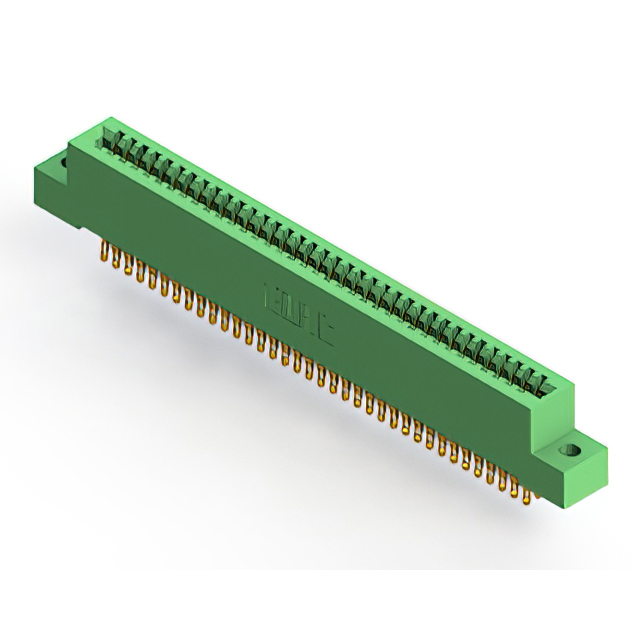

EDAC Inc. 842-072-555-202	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Board Edge Straddle Mount	Cantilever	36	Solder	2	72	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Card Extender

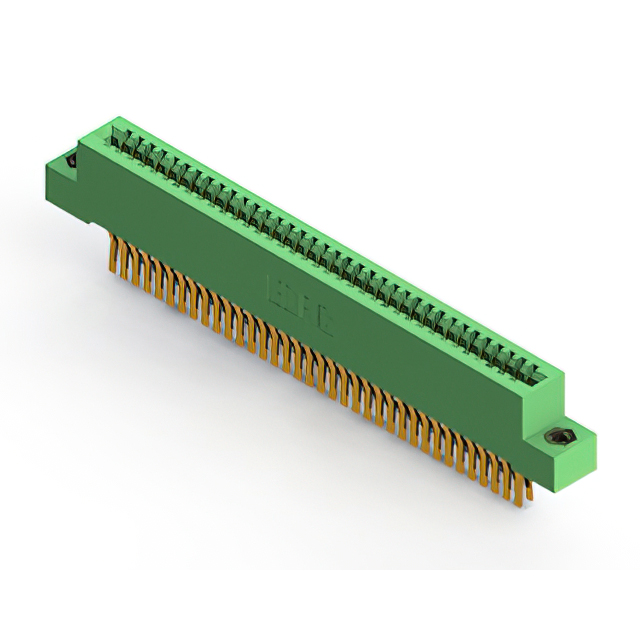

EDAC Inc. 842-072-560-208	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Board Edge Straddle Mount	Cantilever	36	Solder	2	72		4-40 Flush Mount Threaded Insert Top Opening		Card Extender

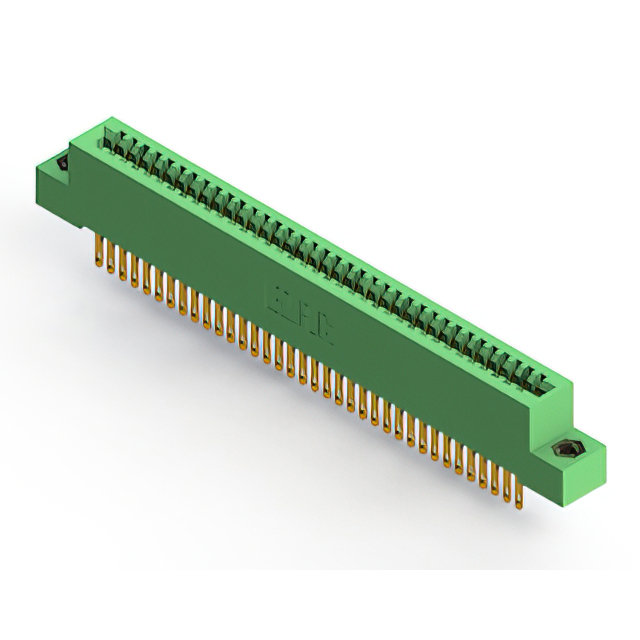

EDAC Inc. 842-072-500-208	2	Diallyl Phthalate (DAP)	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Copper Alloy	125 °C	-40 C	Through Hole	Cantilever	36	Solder Eyelet(s)	2	72		4-40 Flush Mount Threaded Insert Top Opening
