105312 Series

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 14 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tape and Reel

Manufacturer: Molex

Catalog

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 14 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable, Tape and Reel

Part	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Style	Mated Stacking Heights	Contact Length - Post	Contact Length - Post [x]	Contact Material	Insulation Material	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Applications	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Fastening Type	Contact Type	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Features	Contact Finish - Mating	Number of Positions

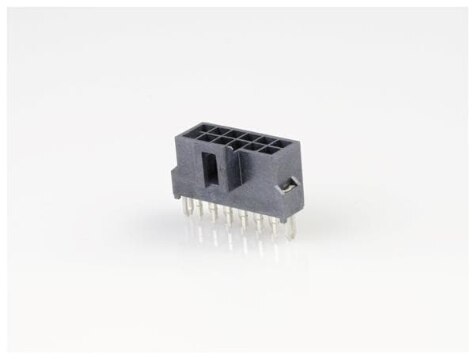

Molex 1053123812
Molex 1053122116	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Natural	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	59 Áin	1.5 Ám	16	Through Hole	Square
Molex 1053123608
Molex 1053124816	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire		3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VAC	1.5 µm	59 µin	Solder		2	-40 °C	115 °C	Natural	Header	Latch Holder	Male Pin	Shrouded - 4 Wall			30 Áin	0.76 Ám	16	Through Hole	Square	10.52 mm	0.414 in	UL94 V-0	Board Guide	Gold

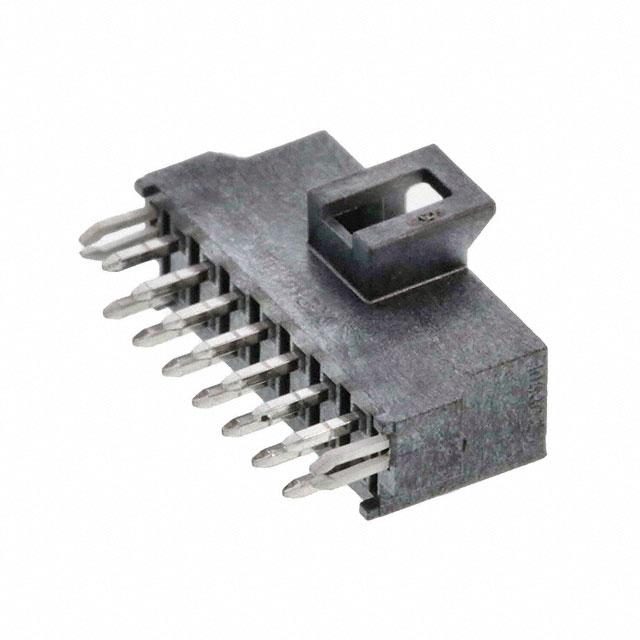

Molex 1053121114	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Black	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	59 Áin	1.5 Ám		Through Hole	Square						14

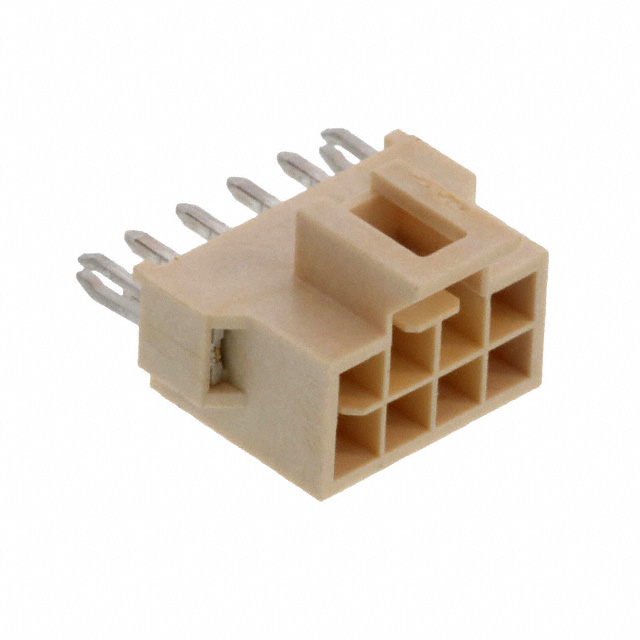

Molex 1053122208	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Natural	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	15 µin	0.38 µm		Through Hole	Square					Gold	8
Molex 1053121106	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Black	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	59 Áin	1.5 Ám		Through Hole	Square						6
Molex 1053121308	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Black	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	30 Áin	0.76 Ám		Through Hole	Square					Gold	8

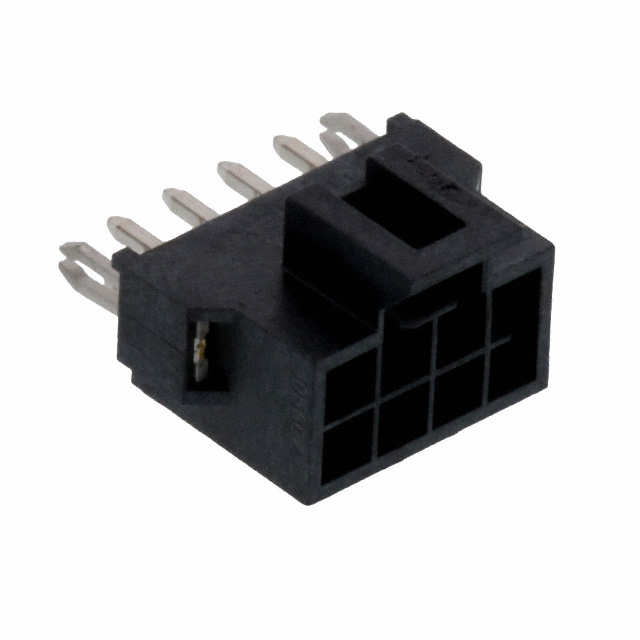

Molex 1053121108	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Black	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	59 Áin	1.5 Ám		Through Hole	Square						8
Molex 1053122316	2.5 mm	0.098 in	0.098 in	2.5 mm	Tin	Board to Cable/Wire	21.3 mm	3.2 mm	0.126 in	Brass	Liquid Crystal Polymer (LCP)	All	250 VDC	1.5 µm	59 µin	Solder	Automotive General Purpose Industrial Medical Military Telecommunications	2	-40 °C	105 ░C	Natural	Header	Latch Holder	Male Pin	Shrouded - 4 Wall	0.356 in	9.05 mm	30 Áin	0.76 Ám	16	Through Hole	Square					Gold
