725-134 Series
Manufacturer: EDAC Inc.
Beta
⌘K

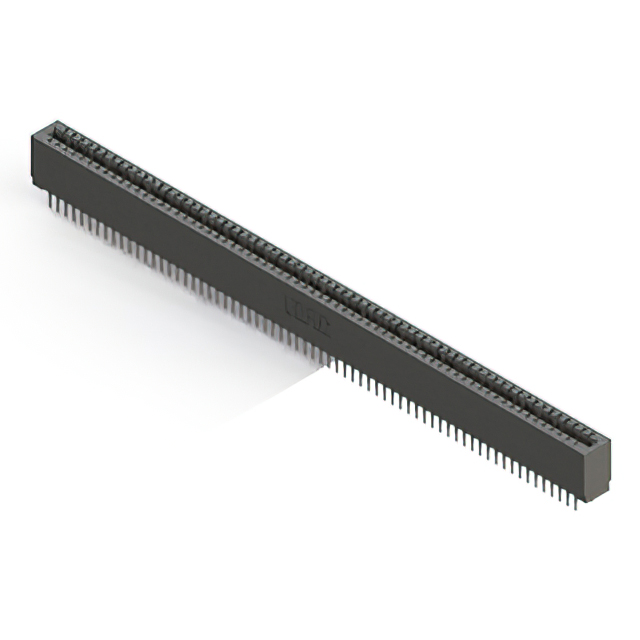

CONN EDGE DUAL FML 134POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Color | Pitch | Pitch | Gender | Contact Finish | Contact Material | Termination | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Card Type | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Read Out | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Black | 0.1 " | 2.54 mm | Female | Gold | Copper Alloy | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | 67 | 30 Áin | 0.76 Ám | Cantilever | -40 C | 105 ░C | 134 | Dual | 2 |
 EDAC Inc. | Polyester Thermoplastic | 2 | Black | 0.1 " | 2.54 mm | Female | Gold | Copper Alloy | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | 67 | 30 Áin | 0.76 Ám | Cantilever | -40 C | 105 ░C | 134 | Dual | 2 |
