870 Series

Catalog

CONNECTOR ACCESSORIES END PLATE STRAIGHT POLYAMIDE 6/6 GRAY BOX

Part	Color	Type	For Use With/Related Products	Stripping Length [Min]	Stripping Length [Max]	Material - Insulation	Termination Style	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Terminal - Width [y]	Number of Positions	Voltage - IEC	Current - IEC	Style

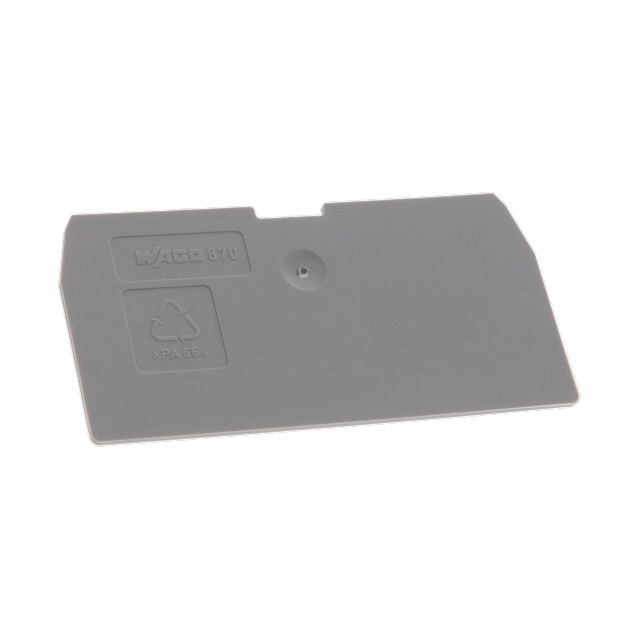

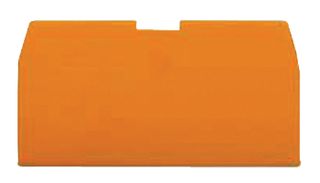

WAGO Corporation 870-943	Gray	End Plate	Terminal Blocks

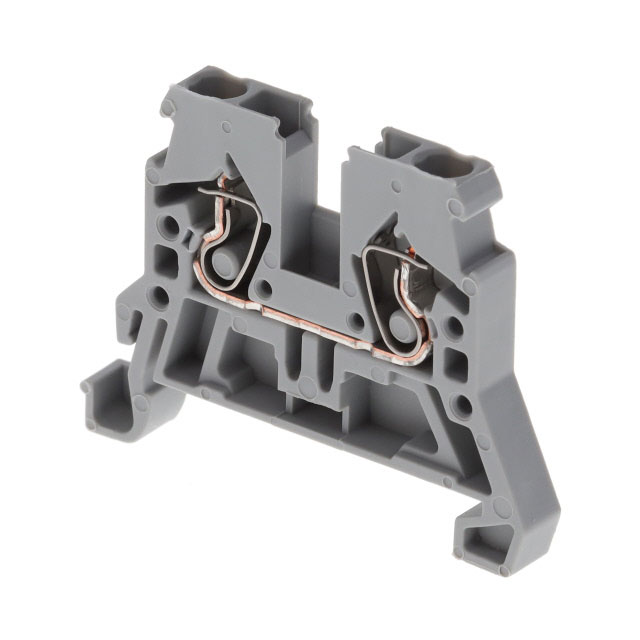

WAGO Corporation 870-901	Gray	Feed Through		6 mm	7 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	28 AWG	12 AWG	2.5 mm²	0.08 mm²	5 mm	2	500 V	24 A
WAGO Corporation 870-404	Gray	Terminal Block Cross Connection	Terminal Blocks											4			Flat Pins

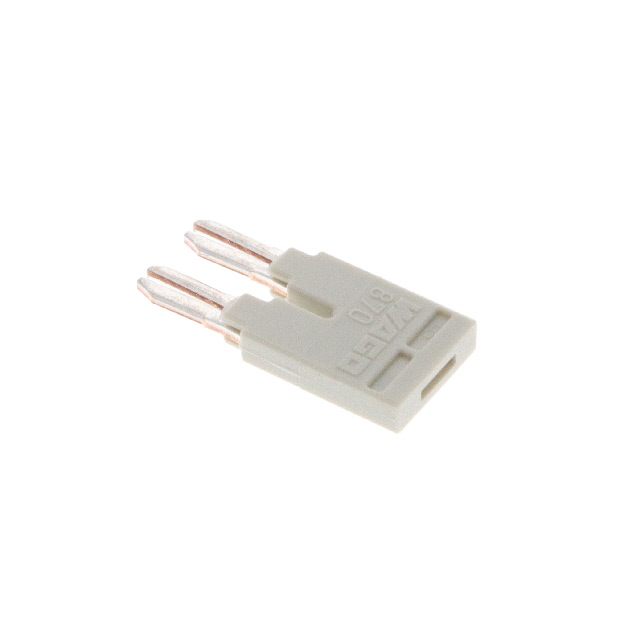

WAGO Corporation 870-402	Gray	Terminal Block Cross Connection	Terminal Blocks											2			Flat Pins
WAGO Corporation 870-837	Green Yellow	Ground Earth		6 mm	7 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	28 AWG	12 AWG	2.5 mm²	0.08 mm²	5 mm	4

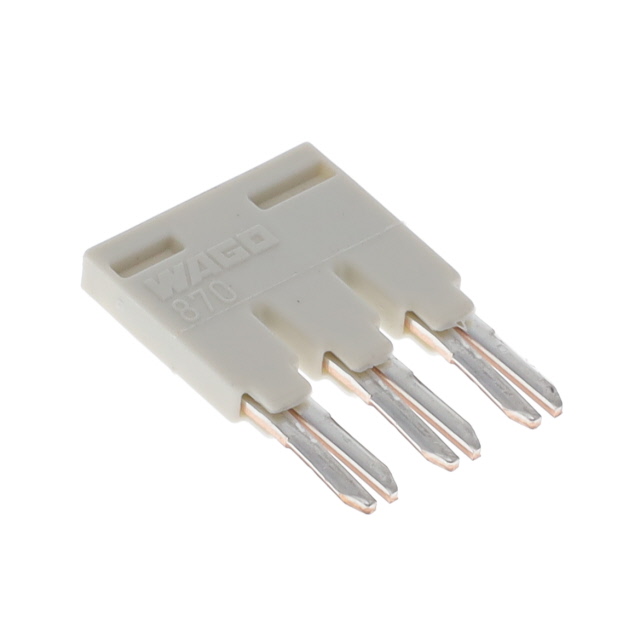

WAGO Corporation 870-403	Gray	Terminal Block Cross Connection	Terminal Blocks														Flat Pins
WAGO Corporation 870-551	Gray	Feed Through		6 mm	7 mm		Push In Spring	3	28 AWG	12 AWG	2.5 mm²	0.08 mm²	5 mm	6	500 V	24 A

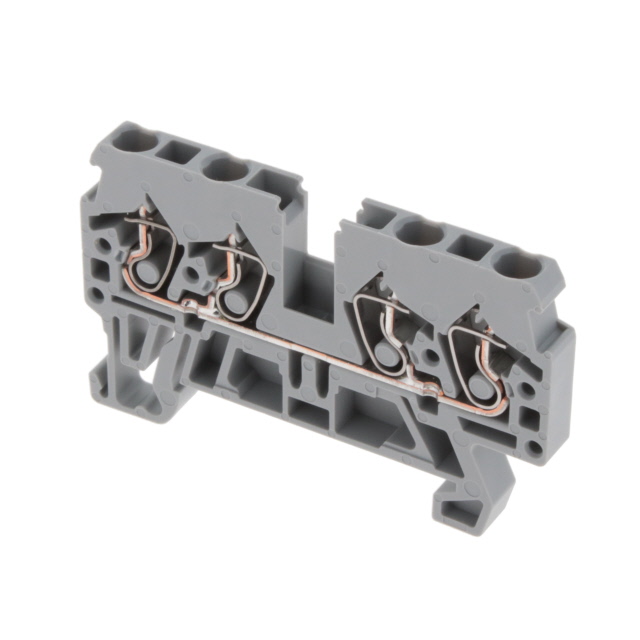

WAGO Corporation 870-831	Gray	Feed Through		6 mm	7 mm	Nylon 6/6 Polyamide (PA66)	Push In Spring	1	28 AWG	12 AWG	2.5 mm²	0.08 mm²	5 mm	4	500 V	24 A
WAGO Corporation 870-568	Gray	End Plate	Terminal Blocks

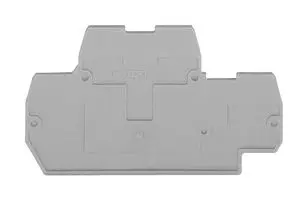

WAGO Corporation 870-518	Gray	End Plate	Terminal Blocks
