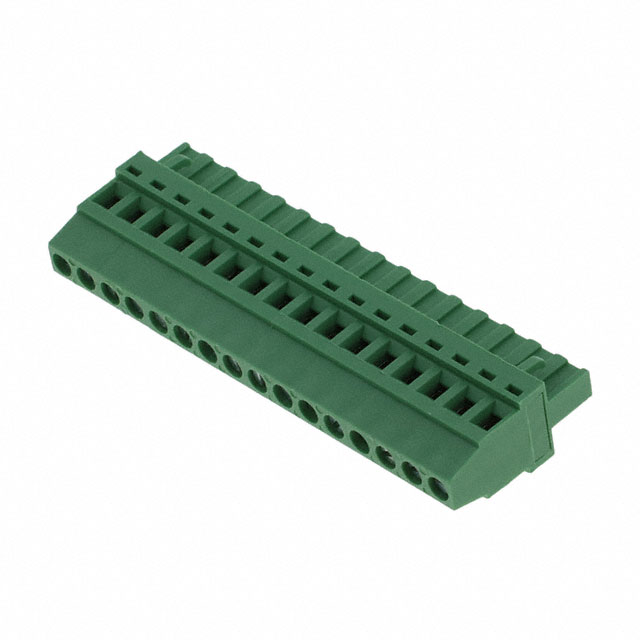

SVF16 Series
Manufacturer: Altech Corporation
Beta
⌘K
PLUG PCB 16P 381MM VERT 11A 300V
| Part | Housing Material | Screw Size | Contact Material | Insulation Height | Wire Gauge or Range - mm² (Minimum) | Wire Gauge or Range - mm² (Maximum) | Torque - Screw | Material Flammability Rating | Wire Strip Length | Number of Positions | Plug Wire Entry Angle | Type | Current - IEC | Features | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Contact Mating Finish | Pitch | Voltage - UL | Positions Per Level | Termination Style | Current - UL | Color | Voltage - IEC | Number of Levels | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | ||||||||||||||||||||||||||||
 Altech Corporation | Nylon PA Polyamide | M3 | Copper Alloy | 1.087 in | 0.25 mm² | 2.5 mm² | 0.51 Nm | UL94 V-0 | 9 mm | 16 | 90 ° | Female Sockets Plug | 12 A | Retention Latches (Wire Side) | 30 AWG | 14 AWG | Nickel | 5.08 mm | 300 V | 16 | Screw - Rising Cage Clamp | 12 A | Green | 250 V | 1 | Free Hanging (In-Line) | -30 °C | 105 °C |
Altech Corporation | ||||||||||||||||||||||||||||
Altech Corporation | ||||||||||||||||||||||||||||
Altech Corporation |
