320634 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

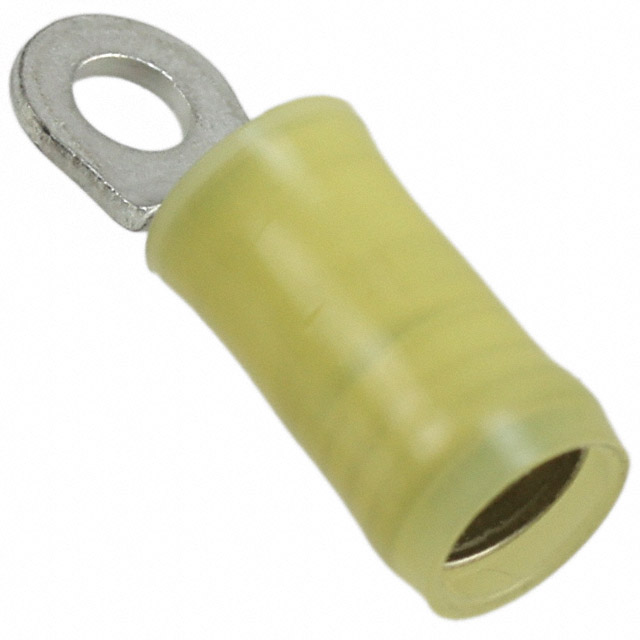

TERMINAL,PIDG R 12-10 6
| Part | Contact Material | Terminal Type | Stud/Tab Size | Mounting Type | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Material - Insulation | Features | Thickness | Thickness | Contact Finish | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge [Max] | Wire Gauge [Min] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper | Circular | 6 Stud | Free Hanging (In-Line) | 24.21 mm | 0.953 in | Crimp | Insulated | Nylon Polyamide (PA) | Serrated Termination | 0.04 in | 1.02 mm | Tin | 0.15 " | 3.81 mm | 0.23 in | 5.84 mm | 7.14 mm | 0.281 in | 12 AWG | 10 AWG | Yellow |
