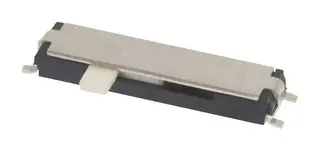

CUS-14T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, SP4T, 0.3A, 4VDC, SMD
| Part | Operating Force [Min] | Operating Force [Max] | Actuator Material | Electrical Life | Switch Travel | Contact Material | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Termination Style | Mounting Type | Actuator Type | Voltage Rating - DC | Actuator Length [x] | Contact Timing | Current Rating (Amps) | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 153 gf | 204 gf | Polyamide (PA) Nylon | 10000 Cycles | 1.5 mm | Copper Alloy | SP4T | -20 ░C | 70 °C | On-On-On-On | Gull Wing | Right Angle Surface Mount | Standard | 4 V | 1.5 mm | Non-Shorting (BBM) | 300 mA | Gold |
