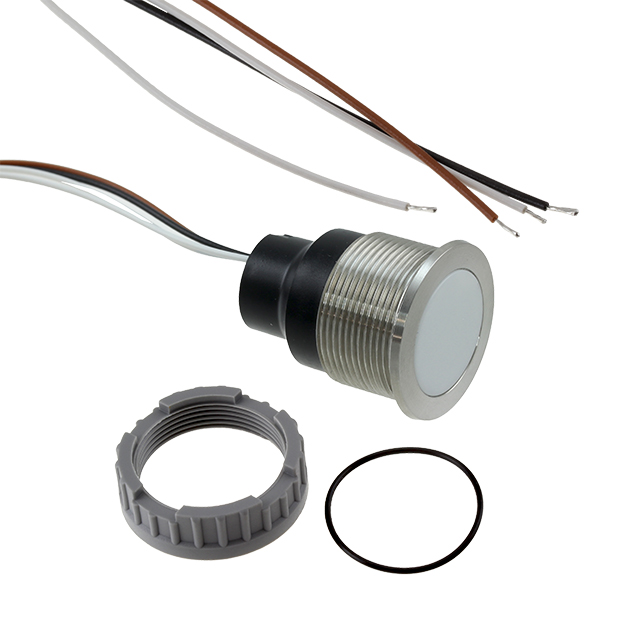

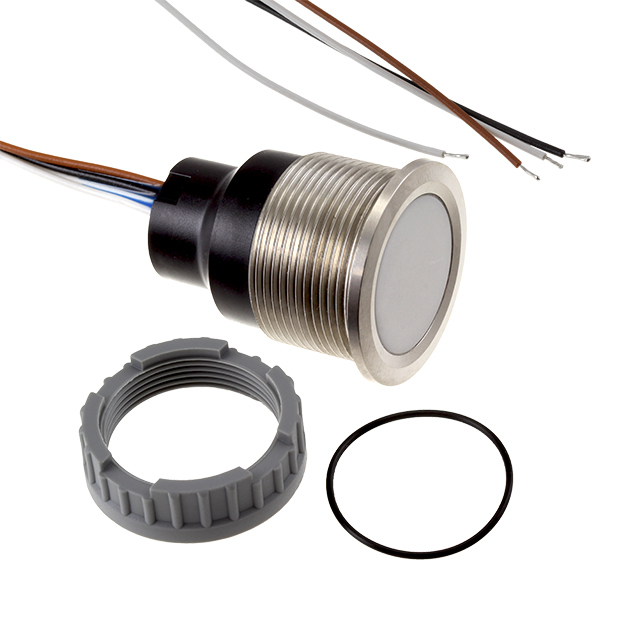

CPS22-LA Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPST 100MA 42V
| Part | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Ingress Protection | Color - Actuator/Cap | Switch Function | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Type | Illumination Type, Color | Features | Actuator Type | Circuit | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) [Min] | Illumination Voltage (Nominal) [Max] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 42 V | Panel Mount Front | 100 mA | IP67 - Dust Tight Waterproof | Clear | Off-On | START | 60 °C | -40 C | Capacitive Illuminated | Blue/Green LED | Ceramic Actuator | Button Flush Round | SPST | 60 VDC | 22.1 mm | 5 VDC | 28 VDC | Wire Leads |
 SCHURTER Inc. | 42 V | Panel Mount Front | 100 mA | IP67 - Dust Tight Waterproof | Clear | Off-On | No Marking | 60 °C | -40 C | Capacitive Illuminated | LED Red | Ceramic Actuator | Button Flush Round | SPST | 60 VDC | 22.1 mm | 5 VDC | 28 VDC | Wire Leads |
 SCHURTER Inc. | 42 V | Panel Mount Front | 100 mA | IP67 - Dust Tight Waterproof | Clear | Off-On | No Marking | 60 °C | -40 C | Capacitive Illuminated | Cyan/Green LED | Ceramic Actuator Finger Guide | Button Flush Round | SPST | 60 VDC | 22.1 mm | 5 VDC | 28 VDC | Wire Leads |
SCHURTER Inc. | 42 V | Panel Mount Front | 100 mA | IP67 - Dust Tight Waterproof | Clear | Off-On | G | 60 °C | -40 C | Capacitive Illuminated | Cyan/Green LED | Ceramic Actuator Finger Guide | Button Flush Round | SPST | 60 VDC | 22.1 mm | 5 VDC | 28 VDC | Wire Leads |
SCHURTER Inc. | 42 V | Panel Mount Front | 100 mA | IP67 - Dust Tight Waterproof | Clear | Off-On | 60 °C | -40 C | Capacitive Illuminated | LED Red White | Ceramic Actuator | Button Flush Round | SPST | 60 VDC | 22.1 mm | 5 VDC | 28 VDC | Wire Leads |
