MB2061L Series

Catalog

SWITCH PUSHBUTTON DPDT 6A 125V

Part	Electrical Life	Mechanical Life	Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Features	Actuator Type	Termination Style	Actuator Marking	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mounting Type	Voltage Rating - AC	Circuit	Ingress Protection

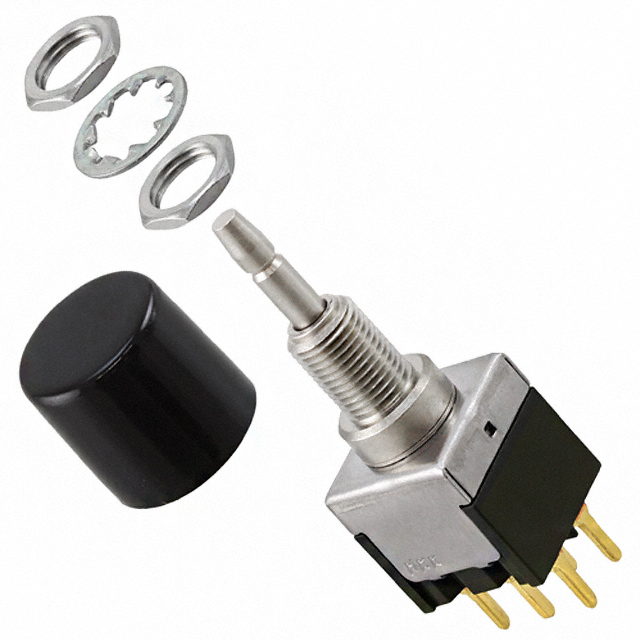

NKK Switches MB2061LS1A03-BA	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Button Round	PC Pin	No Marking	On-Mom	85 °C	-30 ░C	Black	Panel Mount Rear	125 V	DPDT

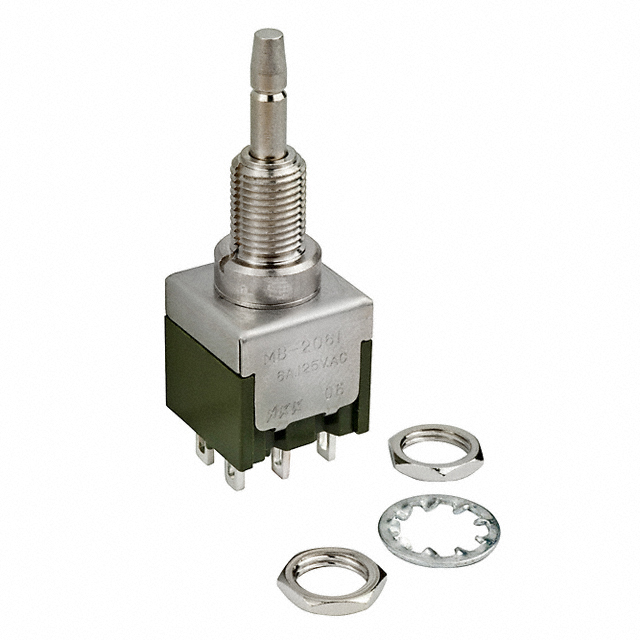

NKK Switches MB2061LS1W01	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Plunger for Cap	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	125 V	DPDT
NKK Switches MB2061LS1W01-BA	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Button Round	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C	Black	Panel Mount Rear	125 V	DPDT

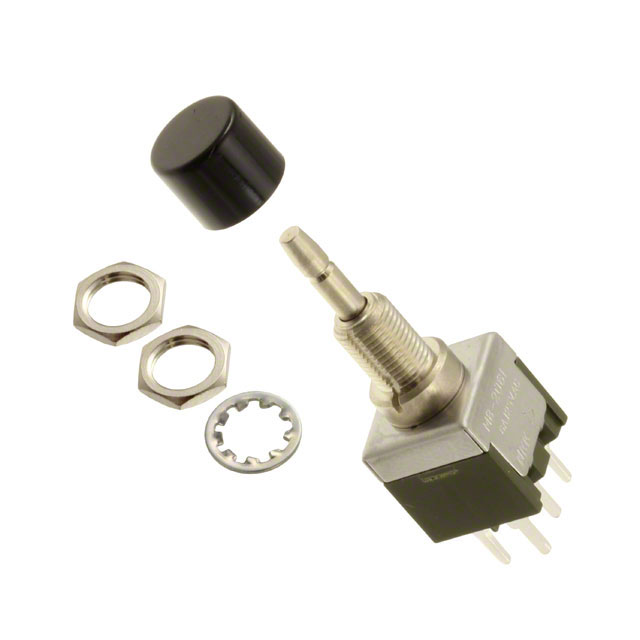

NKK Switches MB2061LS1W03-CA	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Button Round	PC Pin	No Marking	On-Mom	85 °C	-30 ░C	Black	Panel Mount Rear	125 V	DPDT

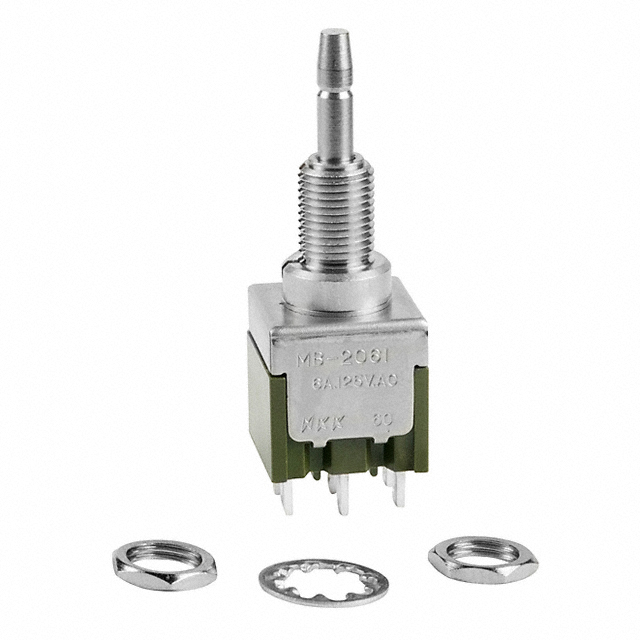

NKK Switches MB2061LS1W01/328	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Low Temperature Lubricant	Plunger for Cap	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	125 V	DPDT

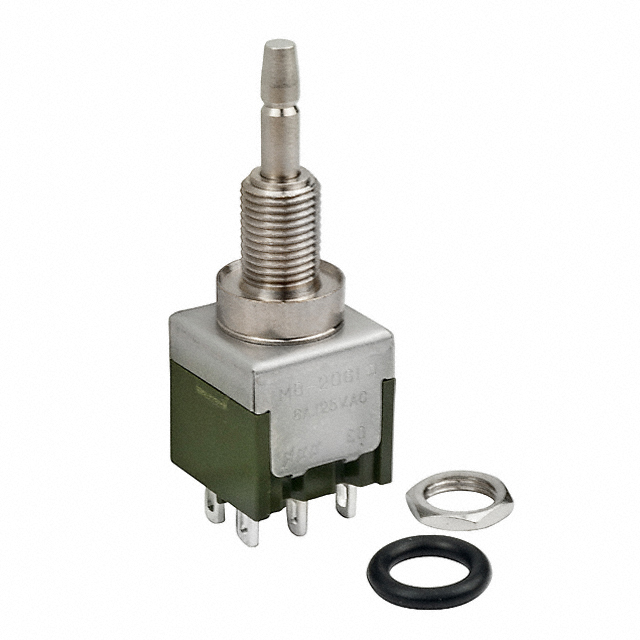

NKK Switches MB2061LD3W01/328	25000 Steps	50000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Low Temperature Lubricant	Plunger for Cap	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	125 V	DPDT	IP67 - Dust Tight Waterproof
NKK Switches MB2061LS1A03	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Plunger for Cap	PC Pin	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	125 V	DPDT

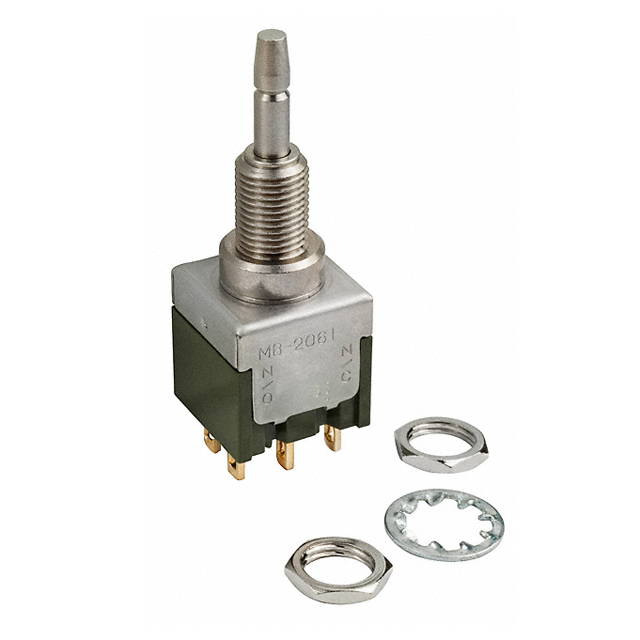

NKK Switches MB2061LD1G01/328	50000 Cycles	100000 Cycles	Standard	28 V	6.5 mm	0.4 VA	Low Temperature Lubricant	Plunger for Cap	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	28 V	DPDT
NKK Switches MB2061LS1W01-CF	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Button Round	Solder Lug	No Marking	On-Mom	85 °C	-30 ░C	Green	Panel Mount Rear	125 V	DPDT

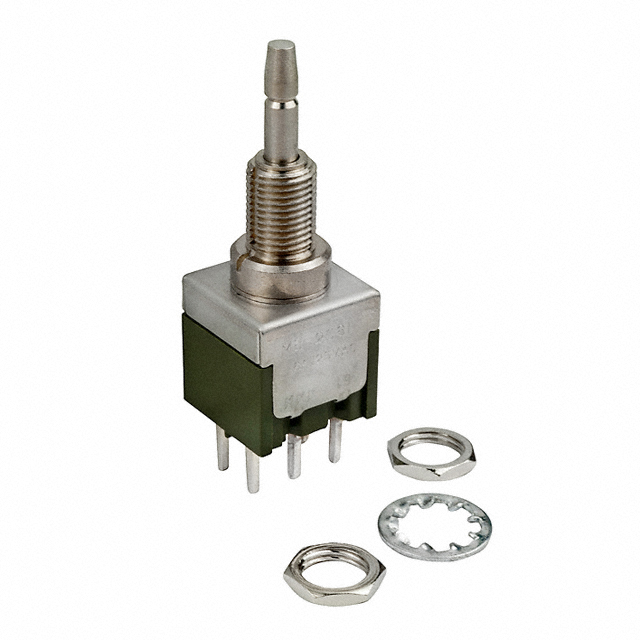

NKK Switches MB2061LS1W03	25000 Steps	100000 Cycles	Standard	30 V	6.5 mm	3 A 6 A	Epoxy Sealed Terminals	Plunger for Cap	PC Pin	No Marking	On-Mom	85 °C	-30 ░C		Panel Mount Rear	125 V	DPDT
