APM-UL Series

Manufacturer: OptiFuse

Catalog

FUSE AUTOMOTIVE 4A 32VDC BLADE

Part	Response Time	Fuse Type	Color	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Package / Case	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage
OptiFuse APM-UL-4A	Fast Blow	Automotive	Pink	32 V	4 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
OptiFuse APM-UL-25A	Fast Blow	Automotive	Clear	32 V	25 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
OptiFuse APM-UL-30A	Fast Blow	Automotive	Green	32 V	30 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA

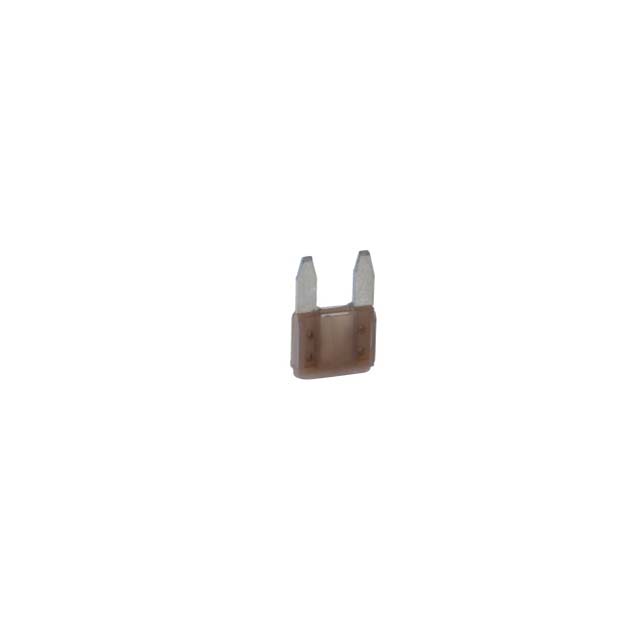

OptiFuse APM-UL-5A	Fast Blow	Automotive	Tan	32 V	5 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA

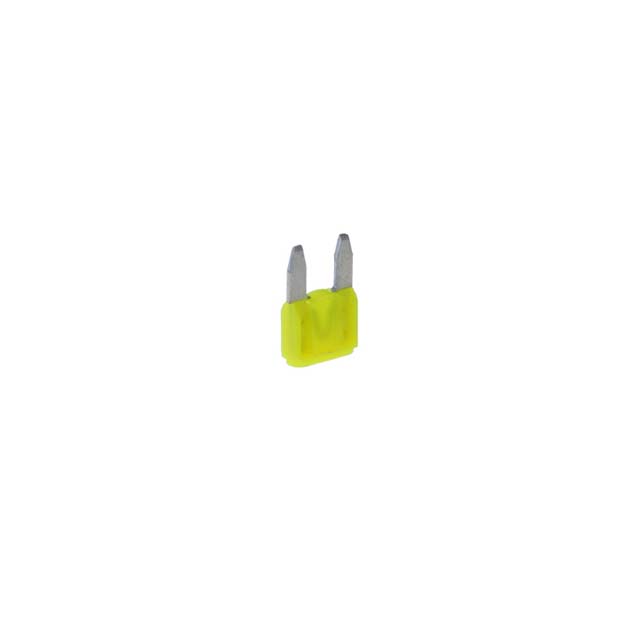

OptiFuse APM-UL-20A	Fast Blow	Automotive	Yellow	32 V	20 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
OptiFuse APM-UL-15A	Fast Blow	Automotive	Blue	32 V	15 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
OptiFuse APM-UL-3A	Fast Blow	Automotive	Violet	32 V	3 A	ISO SAE UL	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
OptiFuse APM-UL-2A		Automotive	Gray	32 V	2 A	ISO8820-3 SAE-J2077 UL275A	Blade Miniature	Requires Holder	8.8 mm	0.346 in	0.15 "	10.9 mm	0.429 "	3.8 mm	1 kA
