ECQ-P6123 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

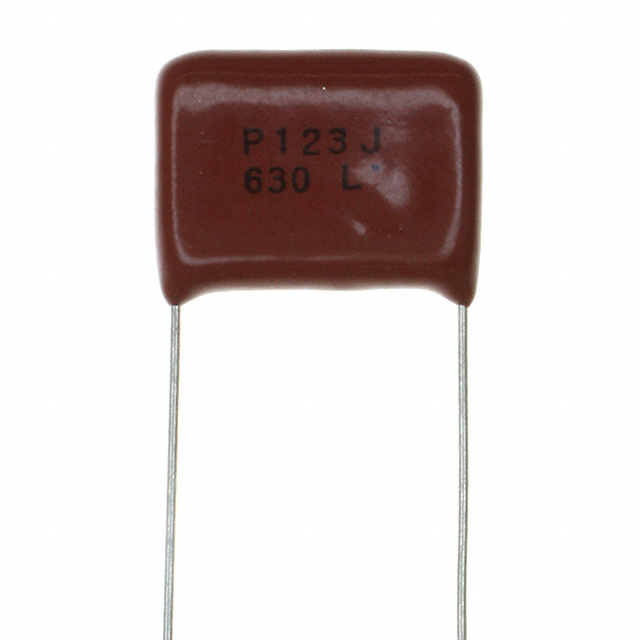

CAP FILM 0.012UF 5% 630VDC RAD
| Part | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Dielectric Material | Mounting Type | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | Termination | Lead Spacing | Lead Spacing | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.012 µF | -40 °C | 105 ░C | DV/DT High Frequency High Pulse Switching | Polypropylene (PP) | Through Hole | 5 % | 14 mm | 0.551 " | Radial | PC Pins | 15 mm | 0.591 in | 0.768 " | 6.5 mm | 19.5 mm | 0.256 in |
