TPS54424 Series
Manufacturer: Texas Instruments
Beta
⌘K

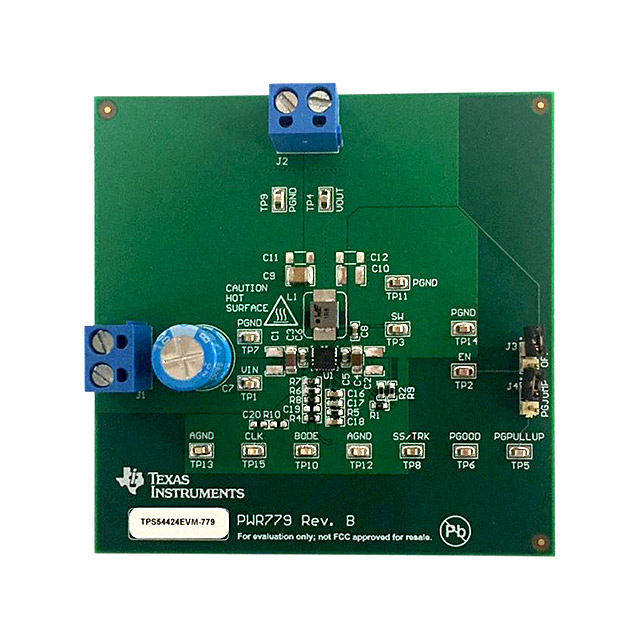

EVAL BOARD FOR TPS54424
| Part | Current - Output | Frequency - Switching | Regulator Topology | Board Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Output | Output Type | Synchronous Rectifier | Voltage - Input (Min) [Min] | Function | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Frequency - Switching [Min] | Frequency - Switching [Max] | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Topology | Mounting Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 4 A | 700 kHz | Buck | Fully Populated | Board(s) | 17 V | 4.5 V | TPS54424 | Non-Isolated | 1 | DC/DC Step Down | 1.8 V | |||||||||||||||||||

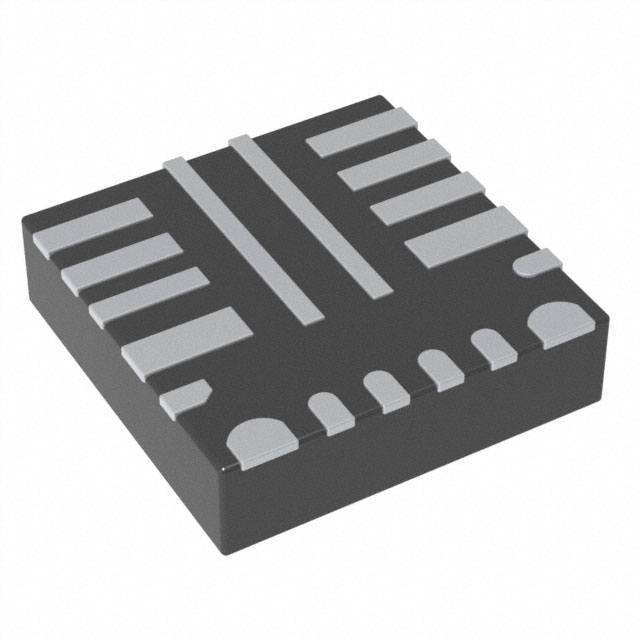

 Texas Instruments | 4 A | Adjustable | 4.5 V | Step-Down | 18-VQFN-HR | 3.5 | 3.5 | 17 V | 0.6 V | 12 V | 200 kHz | 1.6 MHz | Positive | 150 °C | -40 °C | 18-PowerVFQFN | Buck | Surface Mount | 1 |
