842 Series
Manufacturer: EDAC Inc.
Beta
⌘K
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions/Bay/Row | Gender | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Number of Positions | Number of Rows [custom] | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Type | Contact Material | Card Type | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Read Out | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 41 | Female | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Green | 82 | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Dual | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 27 | Female | Gold | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Green | 27 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Right Angle Through Hole | Single | 1 | 1 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Female | Gold | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Green | 16 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Right Angle Through Hole | Single | 1 | 1 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 41 | Female | Gold | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Green | 82 | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Right Angle Through Hole | Dual | ||
 EDAC Inc. | 39 | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Green | 78 | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Dual | ||||||

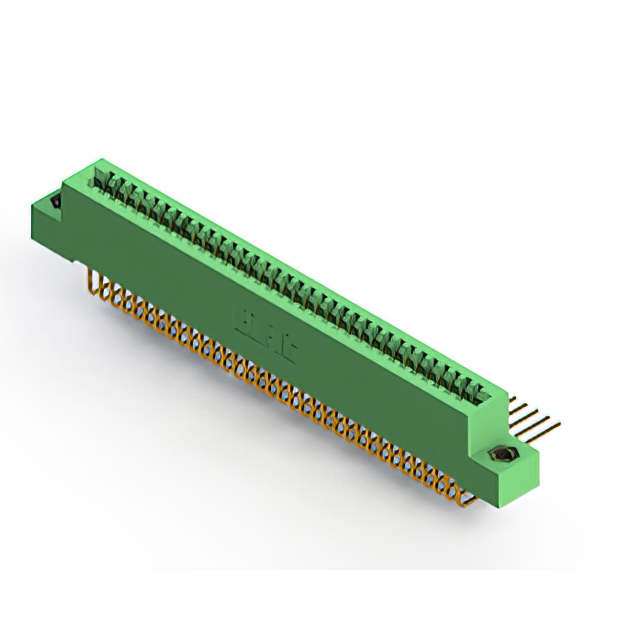

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 34 | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | Green | 68 positions | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Right Angle Through Hole | Dual | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 6 | Female | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Green | 12 | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Dual | ||||
 EDAC Inc. | 23 | Female | Gold | Green | 23 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Wire Wrap | Cantilever | Copper Alloy | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 1 | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 14 | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | Green | 14 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Solder | Cantilever | Copper Alloy | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 1 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 26 | Female | Gold | Flush Mount M3 Threaded Insert Top Opening | Green | 50 | 2 | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Wire Wrap | Cantilever | Copper Alloy | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Dual |
