PBC31 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 31POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Mounting Type	Contact Finish - Post	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Type	Shrouding	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Connector Type	Contact Finish - Mating	Contact Shape	Number of Rows	Material Flammability Rating	Insulation Material	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PBC31SAFN	2.54 µm	100 µin	3 A	Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C	0.95 in	24.13 mm	31	0.23 in	5.84 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)	15.75 mm	0.62 "	All

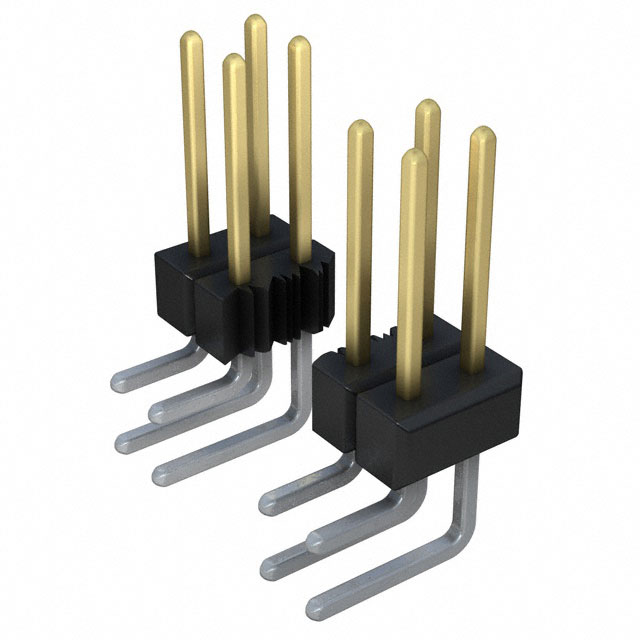

Sullins Connector Solutions PBC31DGAN	2.54 µm	100 µin	3 A	Right Angle Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C				0.318 in	8.08 mm	0.25 µm	10 µin			Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square		UL94 V-0	Polybutylene Terephthalate (PBT)			All	6.1 mm	0.24 in	0.1 in	2.54 mm	62	2	0.1 in	2.54 mm
Sullins Connector Solutions PBC31DAAN	2.54 µm	100 µin	3 A	Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C				0.23 in	5.84 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square		UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.12 in	3.05 mm	62	2	0.1 in	2.54 mm	11.43 mm	0.45 in

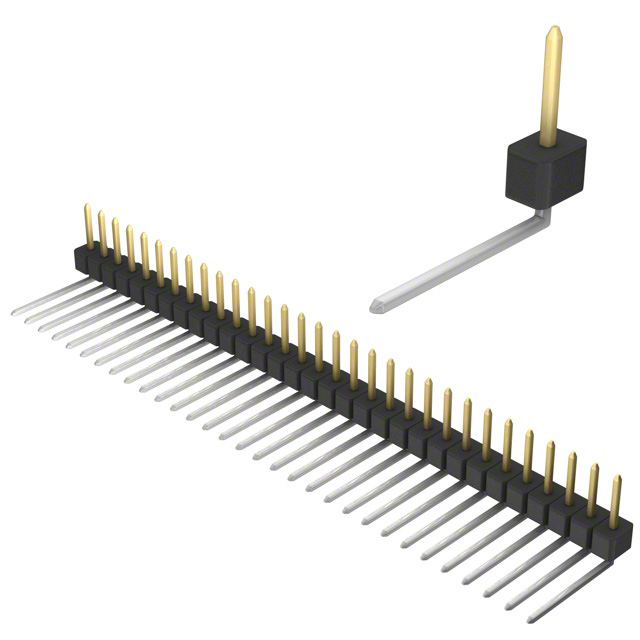

Sullins Connector Solutions PBC31SBDN	2.54 µm	100 µin	3 A	Right Angle Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C			31	0.23 in	5.84 mm	0.25 µm	10 µin	0.14 in	3.56 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.4 in	10.16 mm

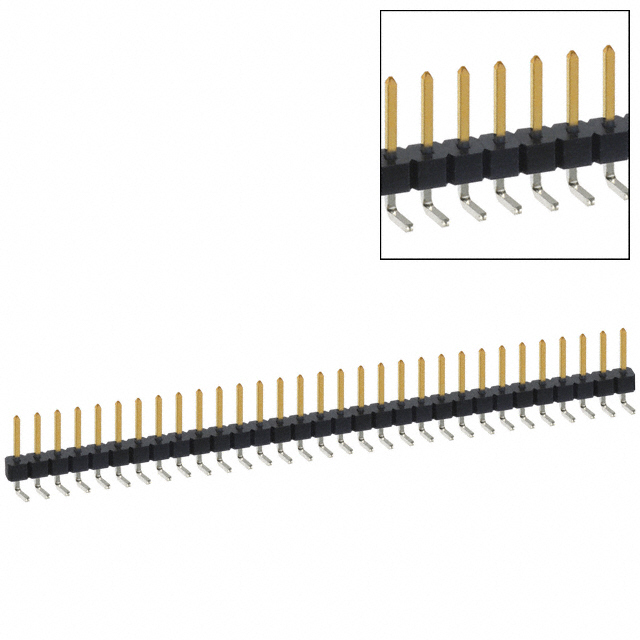

Sullins Connector Solutions PBC31SBAN	2.54 µm	100 µin	3 A	Right Angle Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C			31	0.23 in	5.84 mm	0.25 µm	10 µin	0.14 in	3.56 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.1 in	2.54 mm

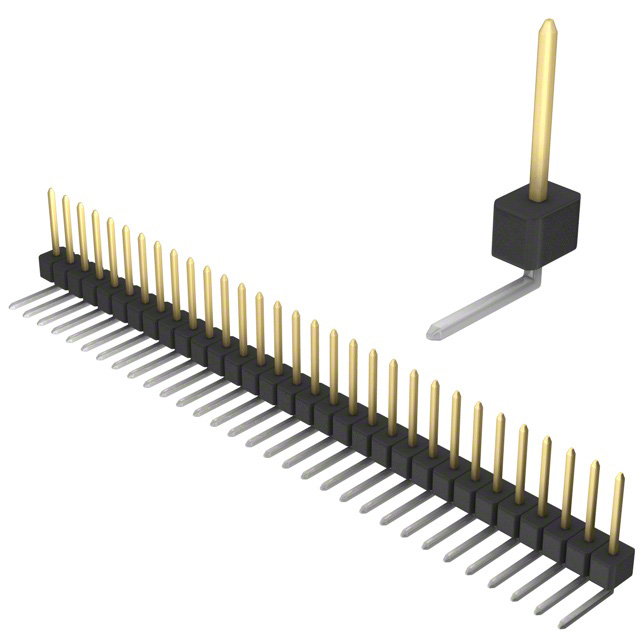

Sullins Connector Solutions PBC31SGBN	2.54 µm	100 µin	3 A	Right Angle Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C			31	0.318 in	8.08 mm	0.25 µm	10 µin	0.14 in	3.56 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)	5.08 mm	0.2 "	All
Sullins Connector Solutions PBC31SAHN	2.54 µm	100 µin	3 A	Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C	1.15 in	29.21 mm	31	0.23 in	5.84 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.82 in	20.83 mm
Sullins Connector Solutions PBC31SAGN	2.54 µm	100 µin	3 A	Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C	1.05 in	26.67 mm	31	0.23 in	5.84 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.72 "	18.29 mm
Sullins Connector Solutions PBC31SABN	2.54 µm	100 µin	3 A	Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C	0.56 in	14.22 mm	31	0.23 in	5.84 mm	0.25 µm	10 µin	0.1 in	2.54 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.23 "	5.84 mm

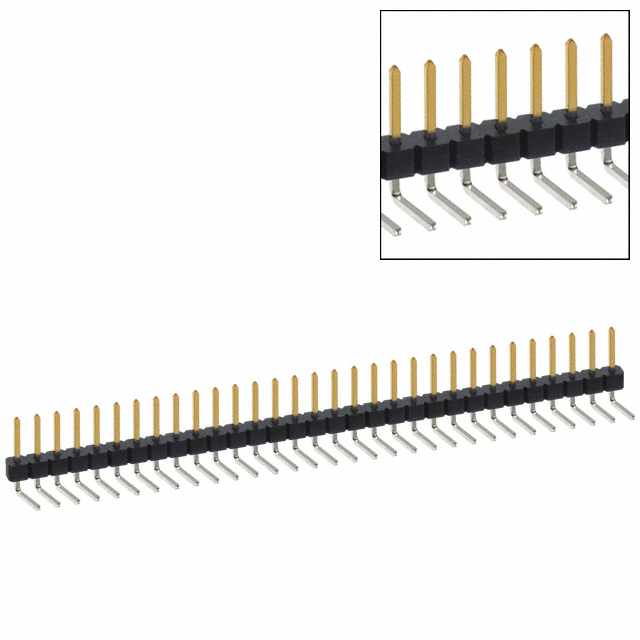

Sullins Connector Solutions PBC31SBCN	2.54 µm	100 µin	3 A	Right Angle Through Hole	Tin	Board to Board Cable	Phosphor Bronze	-65 ░C	125 °C			31	0.23 in	5.84 mm	0.25 µm	10 µin	0.14 in	3.56 mm	Black	Male Pin	Unshrouded	0.1 "	2.54 mm	Push-Pull	Solder	Header Breakaway	Gold	Square	1	UL94 V-0	Polybutylene Terephthalate (PBT)			All			0.3 in	7.62 mm
