9501-1593 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

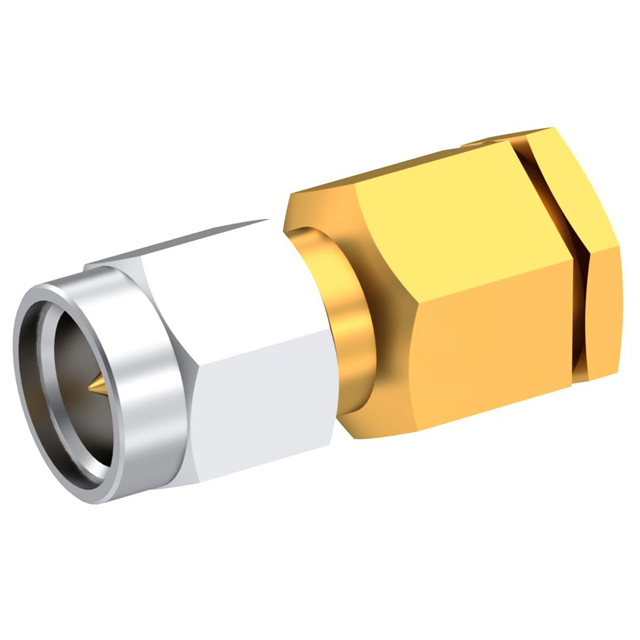

SMA / STRAIGHT PLUG MALE SOLDER
| Part | Center Contact Plating | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Housing Color | Frequency - Max [Max] | Impedance | Center Contact Material | Fastening Type | Connector Style | Number of Ports | Connector Type | Contact Termination | Shield Termination | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | Stainless Steel | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Gold | 18 GHz | 50 Ohms | Beryllium Copper | Threaded | SMA | 1 | Plug Male Pin | Solder | Clamp | Free Hanging (In-Line) | RG-405 (.086 Semi Rigid) |
