PT 1,5 Series

Catalog

FIXED TERMINAL BLOCKS PT 1.5/16-3.5V 16P VER 3.5MM SCREW

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Housing Material	Screw Thread	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Current	Number of Levels	Wire Termination	Mounting Type	Pitch	Pitch	Features	Positions Per Level	Voltage	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Strip Length	Insulation Height [z]	Insulation Height [z]	Contact Mating Finish	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Plug Wire Entry	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Current - IEC

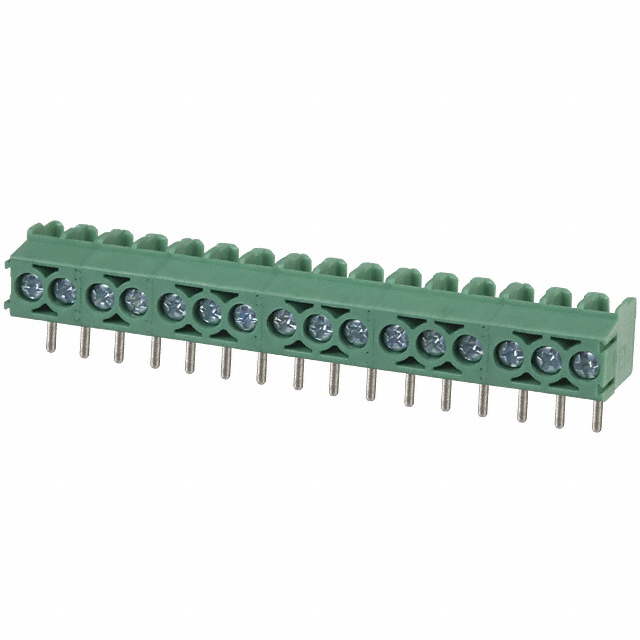

Phoenix Contact 1984905	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Polyamide (PA) Nylon	M2	Vertical with Board	26 AWG	16 AWG	10 A	1	Screw	Through Hole	3.5 mm	0.138 "	Interlocking (Side)	16	300 VDC	Green

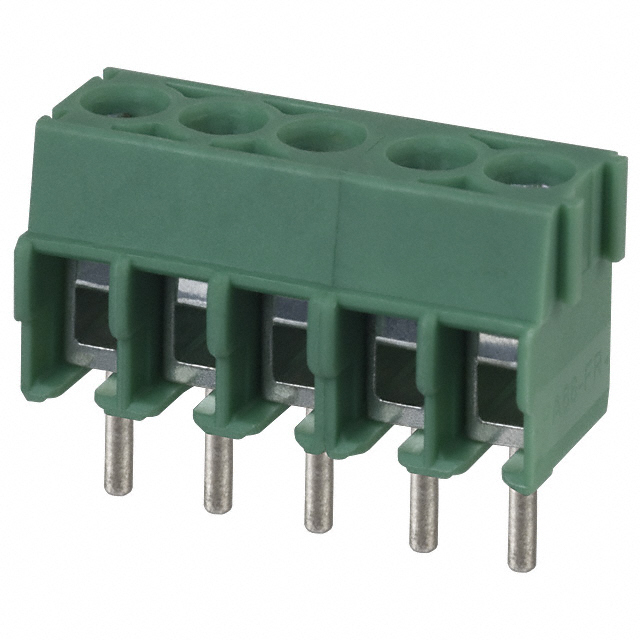

Phoenix Contact 1984646	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Polyamide (PA) Nylon	M2	Horizontal with Board	26 AWG	16 AWG	10 A	1	Screw	Through Hole	3.5 mm	0.138 "	Interlocking (Side)	5	300 VDC	Green
Phoenix Contact 1989557	0.4 Nm	0.35 Nm	3.5 Lb-In	3.1 Lb-In	Polyamide (PA) Nylon	M2.6	Horizontal with Board	26 AWG	12 AWG	18 A	1	Screw	Through Hole	5 mm	0.197 in	Interlocking (Side)	13	300 VDC	Black

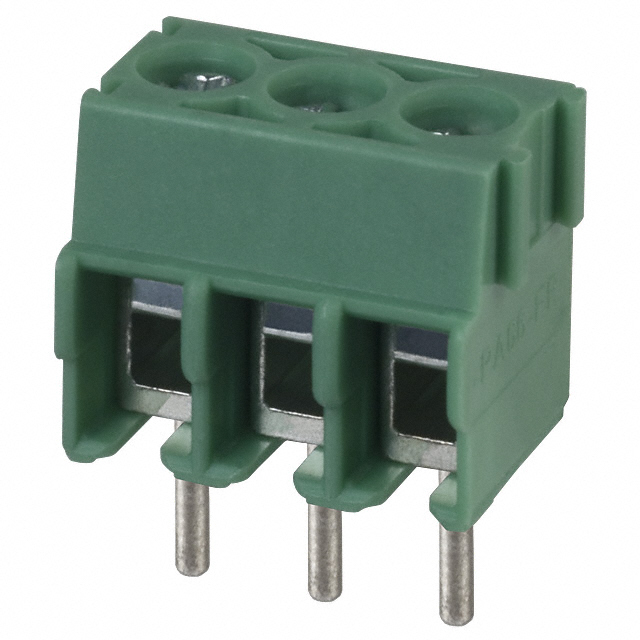

Phoenix Contact 1984620	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Polyamide (PA) Nylon	M2	Horizontal with Board	26 AWG	16 AWG	10 A	1	Screw	Through Hole	3.5 mm	0.138 "	Interlocking (Side)	3	300 VDC	Green
Phoenix Contact 1989984	0.4 Nm	0.35 Nm	3.5 Lb-In	3.1 Lb-In	Polyamide (PA) Nylon	M2.6	Horizontal with Board	26 AWG	12 AWG	18 A	1	Screw	Through Hole	5 mm	0.197 in	Interlocking (Side)	6	300 VDC	Gray
Phoenix Contact 1935174	0.4 Nm	0.35 Nm	3.5 Lb-In	3.1 Lb-In	Polyamide (PA) Nylon	M2.6	Horizontal with Board	26 AWG	12 AWG	18 A	1	Screw	Through Hole	5 mm	0.197 in	Interlocking (Side)	3	300 VDC	Green
Phoenix Contact 1989971							Horizontal with Board	26 AWG	12 AWG	18 A	1	Screw	Through Hole	5 mm	0.197 in	Interlocking (Side)	9	300 VDC	Gray
Phoenix Contact 1702512	0.4 Nm	0.35 Nm	3.5 Lb-In	3.1 Lb-In							1		Free Hanging (In-Line)	5 mm	0.197 in	Positions Stamped	8		Green	2.5 mm˛	0.2 mm˛	6 mm	13.15 mm	0.518 in	Tin	Plug for Unshrouded Header	14 AWG	28 AWG	90 °	Screw - Rising Cage Clamp	8	2.5 mm²	0.2 mm²	250 V	10 A
Phoenix Contact 1984730							Horizontal with Board	26 AWG	16 AWG	10 A	1	Screw	Through Hole	3.5 mm	0.138 "	Interlocking (Side)	14	300 VDC	Green
Phoenix Contact 1935349							Vertical with Board	26 AWG	12 AWG	18 A	1	Screw	Through Hole	5 mm	0.197 in	Interlocking (Side)	5	300 VDC	Green
