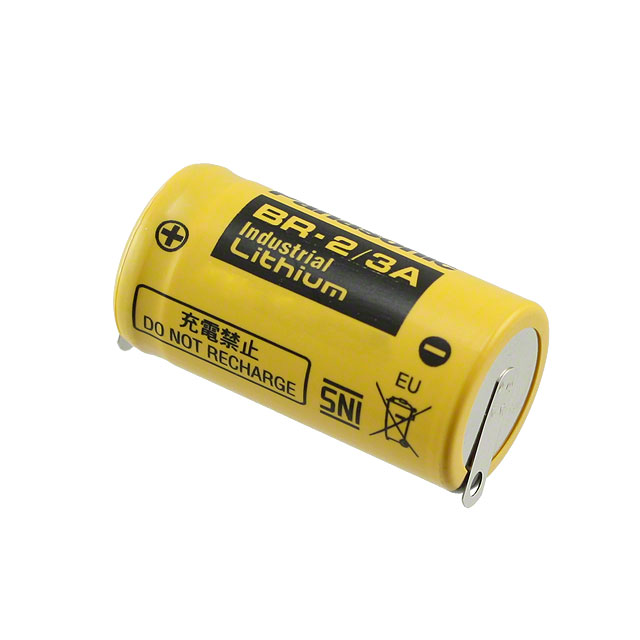

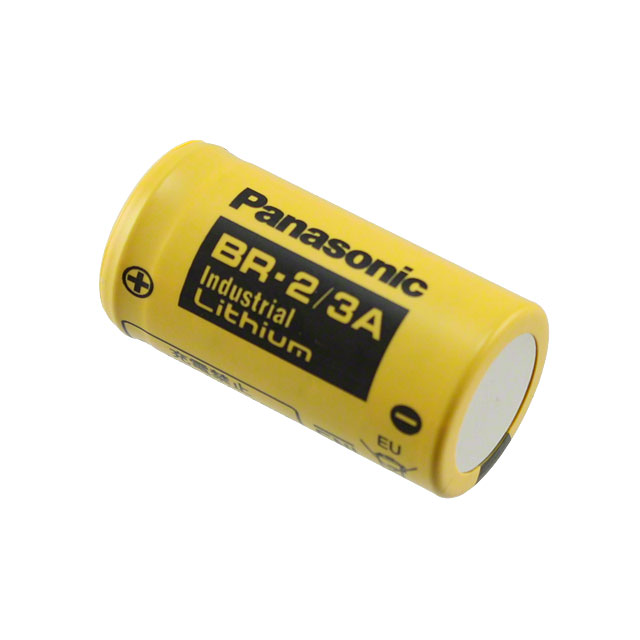

BR-2/3 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
BATTERY LITHIUM 3V
| Part | Battery Chemistry | Weight | Capacity | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Shipping Info | Discharge Rate | Battery Cell Size | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | Lithium Poly-Carbon Monofluoride | 13.61 g | 1.45 Ah | 1.32 in | 33.5 mm | 0.67 in | 17 mm | 3 VDC | Due to restrictions only ground shipment is allowed. | |||
 Panasonic Industrial Automation Sales | Lithium Poly-Carbon Monofluoride | 13.61 g | 1.2 Ah | 1.32 in | 33.5 mm | 0.67 in | 17 mm | 3 VDC | Due to restrictions only ground shipment is allowed. | 2.5 mA | 2/3A | Button Top (Extending) |
 Panasonic Industrial Automation Sales | Lithium Poly-Carbon Monofluoride | 13.61 g | 1.2 Ah | 1.34 in | 34 mm | 0.67 in | 17 mm | 3 VDC | Due to restrictions only ground shipment is allowed. | 2.5 mA | 2/3A | Solder Tab |
