2238106 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

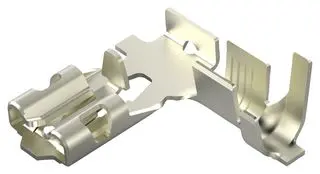

QUICK DISCONNECT TERMINAL, POSITIVE LOCK 250 SERIES, FEMALE QUICK DISCONNECT, 12 AWG, 10 AWG
| Part | Insulation | Termination | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Gender | Mounting Type | Terminal Type | Tab Width | Tab Width | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Non-Insulated | Crimp | Nickel | 12 AWG | 10 AWG | 0.15 " | 5.08 mm | 3.81 mm | 0.2 " | 0.032 in | 0.81 mm | 0.255 in | 6.48 mm | Female | Free Hanging (In-Line) Right Angle | Angled - 90° Flag | 6.35 mm | 0.25 in | Steel |
