OSTTA07 Series

Catalog

TERM BLK 7P SIDE ENT 5.08MM PCB

Part	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Housing Material	Screw Thread	Screw Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Current	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Color	Voltage	Positions Per Level [custom]	Mounting Type	Pitch	Pitch	Wire Termination	Features

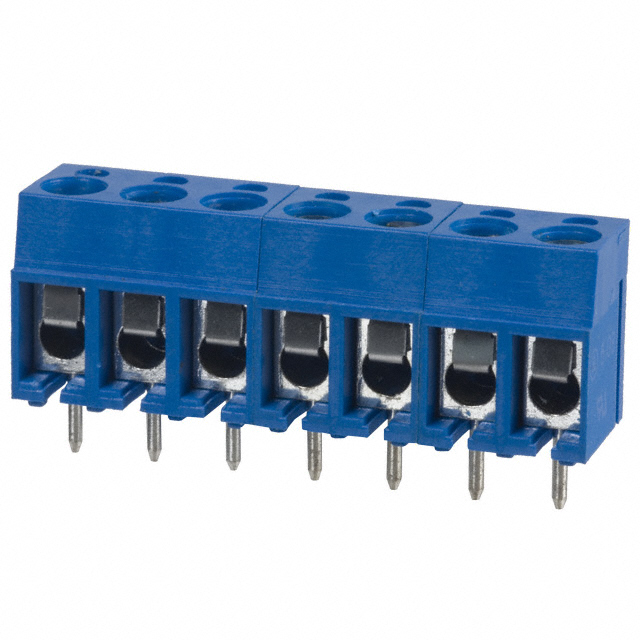

On Shore Technology Inc. OSTTA074163	Stainless Steel	3.5 Lb-In	0.4 Nm	Thermoplastic	M3	Steel - Zinc Plated	-30 ░C	105 ░C	1	15 A	Horizontal with Board	14 AWG	22 AWG	Blue	300 VDC	7	Through Hole	5.08 mm	0.2 in	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. OSTTA070161	Stainless Steel	2.6 Lb-In	0.3 Nm	Thermoplastic	M3	Steel - Zinc Plated	-30 ░C	105 ░C	1	16 A	Horizontal with Board	14 AWG	26 AWG	Blue		7	Through Hole	5 mm	0.197 in	Screw - Leaf Spring Wire Guard	Interlocking (Side)
On Shore Technology Inc. OSTTA072161	Stainless Steel	3.5 Lb-In	0.4 Nm	Thermoplastic	M3	Steel - Zinc Plated	-30 ░C	105 ░C	1	16 A	Horizontal with Board	14 AWG	22 AWG	Blue		7	Through Hole	7.5 mm	0.295 in	Screw - Leaf Spring Wire Guard	Interlocking (Side)
