QS10 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 48V 240W

Part	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Standard Number	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Efficiency	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Input Type	Features	Current - Output (Max)	Current - Output (Max) [Max]

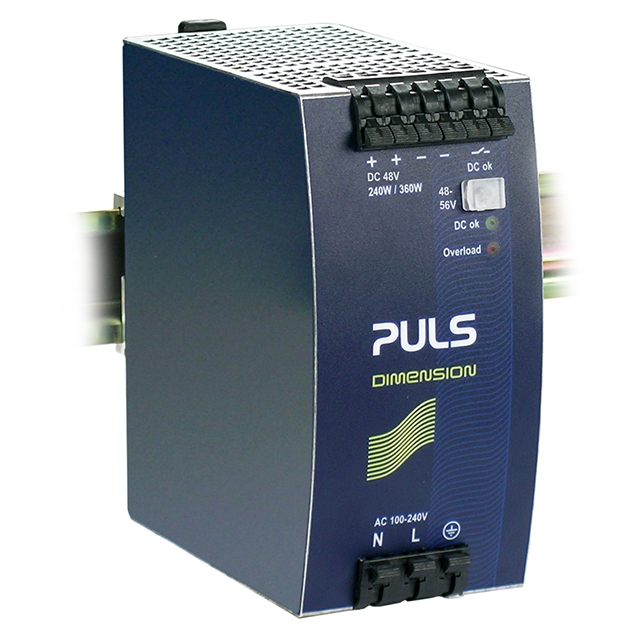

PULS, LP QS10.481-A1	ATEX CSA IEC IECEx UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	48 V	508 60950-1 61010-2-201 Class I Div 2	1	276 VAC	85 VAC	92 %	500 V	Hazardous Locations ITE (Commercial)	70 °C	-10 °C	240 Watts	AC	Adjustable Output Load Sharing PFC	5 A

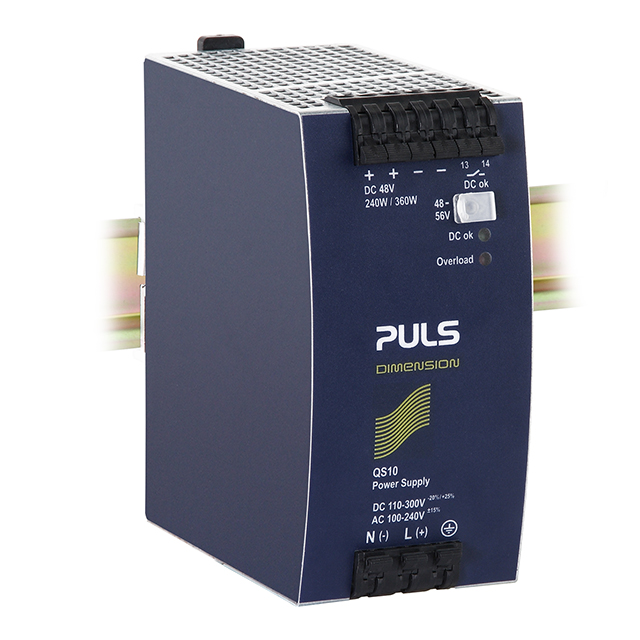

PULS, LP QS10.481-D1	EAC IEC UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	48 V	508 60950-1 61010-2-201	1	276 VAC	85 VAC	92 %	500 V	ITE (Commercial)	70 °C	-10 °C	240 Watts	AC	Adjustable Output Load Sharing PFC	5 A

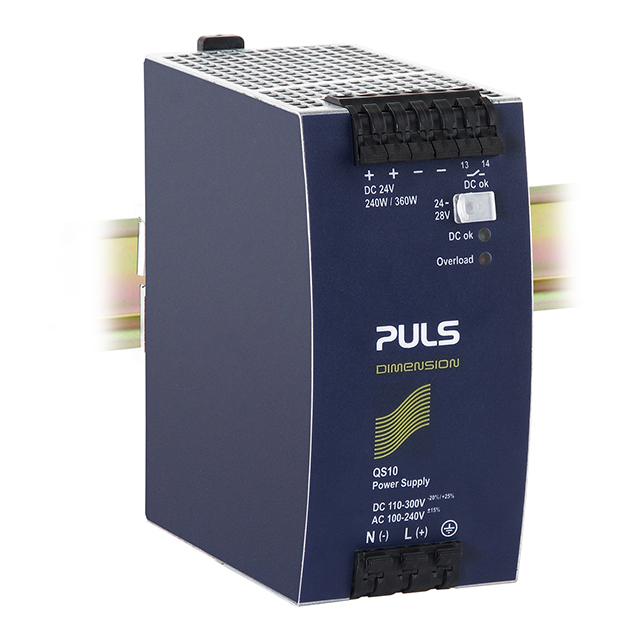

PULS, LP QS10.241-D1	EAC IEC UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	24 V	508 60950-1 61010-2-201	1	276 VAC	85 VAC	93.5 %	500 V	ITE (Commercial)	70 °C	-25 °C	240 Watts	AC	Adjustable Output Load Sharing PFC		10 A
PULS, LP QS10.241	ABS CSA DNV GL EAC IEC SEMI UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	24 V	508 60950-1 61010-2-201 Class I Div 2 F47	1	276 VAC	85 VAC	93.5 %	500 V	ITE (Commercial)	70 °C	0 °C	240 Watts	AC	Adjustable Output Load Sharing PFC		10 A

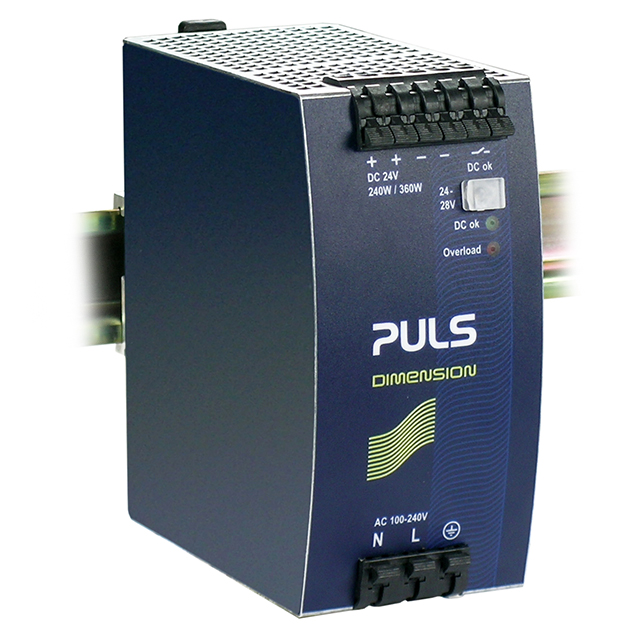

PULS, LP QS10.241-C1	ABS CSA DNV GL EAC EN IEC SEMI UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	24 V	50155 508 60950-1 61010-2-201 Class I Div 2 F47	1	276 VAC	85 VAC	93.5 %	500 V	ITE (Commercial)	70 °C	-25 °C	240 Watts	AC	Adjustable Output Conformal Coating Load Sharing PFC		10 A

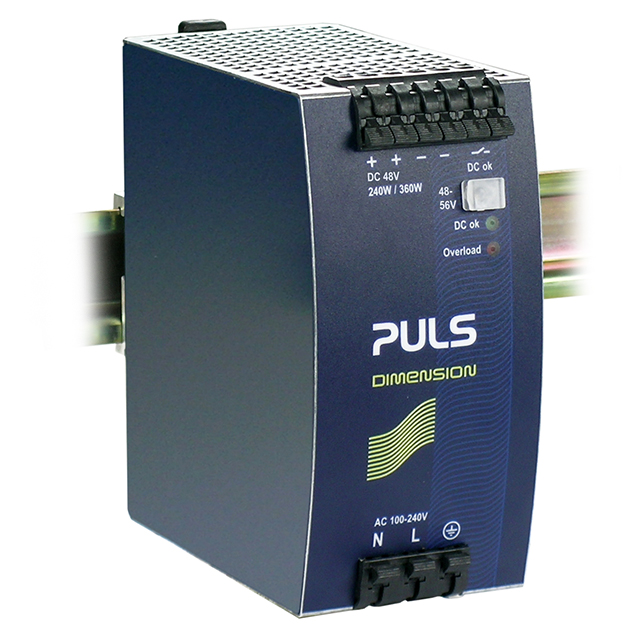

PULS, LP QS10.481	ABS CSA DNV GL EAC IEC UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	48 V	508 60950-1 61010-2-201 Class I Div 2	1	276 VAC	85 VAC	92 %	500 V	ITE (Commercial)	70 °C	0 °C	240 Watts	AC	Adjustable Output Load Sharing PFC	5 A
PULS, LP QS10.301	ABS CSA DNV GL EAC IEC UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	30 V	508 60950-1 61010-2-201 Class I Div 2	1	276 VAC	85 VAC	93.5 %	500 V	ITE (Commercial)	70 °C	-10 °C	240 Watts	AC	Adjustable Output Load Sharing PFC		8 A

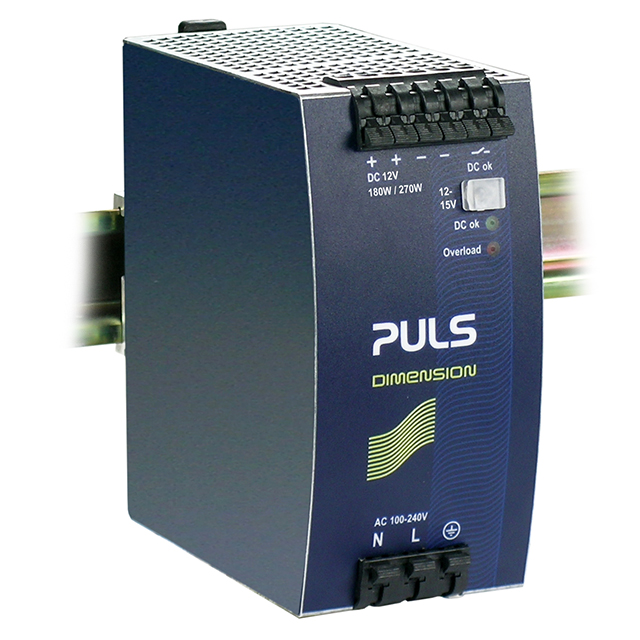

PULS, LP QS10.121-A1	ATEX CSA EAC IEC IECEx UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	12 V	508 60950-1 61010-2-201 Class I Div 2	1	240 VAC	100 VAC	91.8 %	500 V	Hazardous Locations ITE (Commercial)	70 °C	-25 °C	180 W	AC	Adjustable Output Load Sharing PFC		15 A

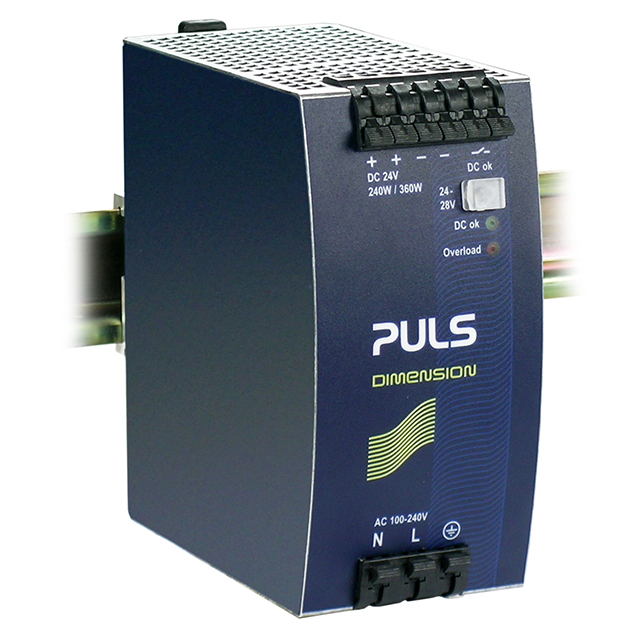

PULS, LP QS10.241-A1	ABS ATEX CSA DNV GL EAC IEC IECEx SEMI UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	24 V	508 60950-1 61010-2-201 Class I Div 2 F47	1	276 VAC	85 VAC	93.5 %	500 V	Hazardous Locations ITE (Commercial)	70 °C	-25 °C	240 Watts	AC	Adjustable Output Load Sharing PFC		10 A

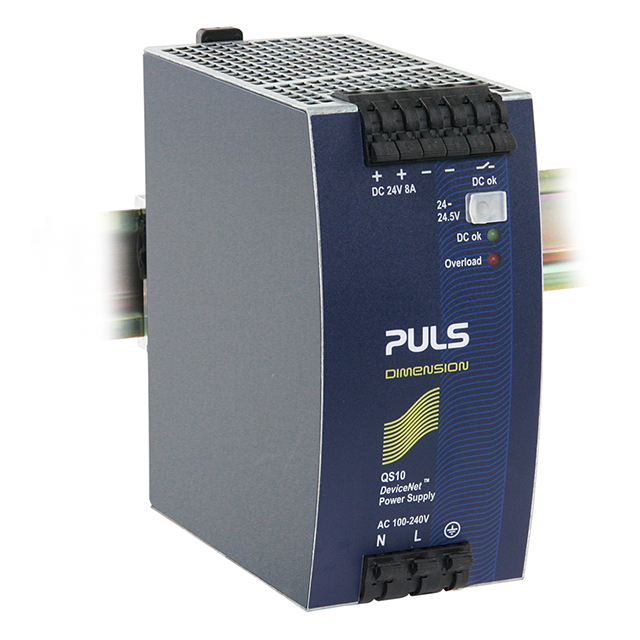

PULS, LP QS10.DNET	ABS CSA DNV GL EAC IEC SEMI UL	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	24 V	508 60950-1 61010-2-201 Class I Div 2 F47	1	276 VAC	85 VAC	92.7 %	500 V	ITE (Commercial)	70 °C	-10 °C	192 W	AC	Adjustable Output Load Sharing PFC		8 A
