833-082 Series
Manufacturer: EDAC Inc.
Beta
⌘K

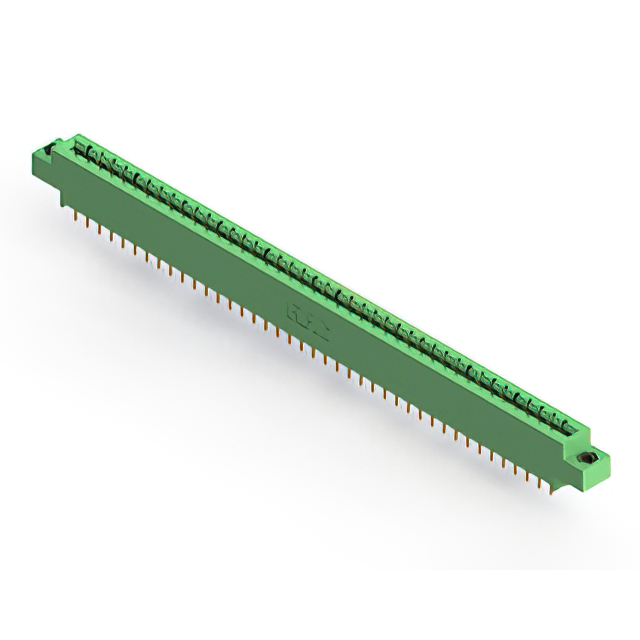

CONN EDGE DUAL FMALE 82POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Card Type | Pitch | Pitch | Number of Positions/Bay/Row | Contact Finish | Read Out | Number of Positions | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Material | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Wire Wrap | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.25 Ám | 10 Áin |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Right Angle Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | 0.128 " | 3.25 mm | Female | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Female | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Wire Wrap | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Female | 0.25 Ám | 10 Áin |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Wire Wrap | 0.156 " | 3.96 mm | Female | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Right Angle Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | Flush Mount M3 Threaded Insert Top Opening | Female | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.25 Ám | 10 Áin |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | M3 Threaded Insert Top Mount Opening | Female | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.25 Ám | 10 Áin |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 41 | Gold | Dual | 82 | 2 | 125 °C | -40 C | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Solder | M3 Threaded Insert Top Mount Opening | Female | 0.25 Ám | 10 Áin |
