3RQ311 Series
Manufacturer: Siemens
Beta
⌘K

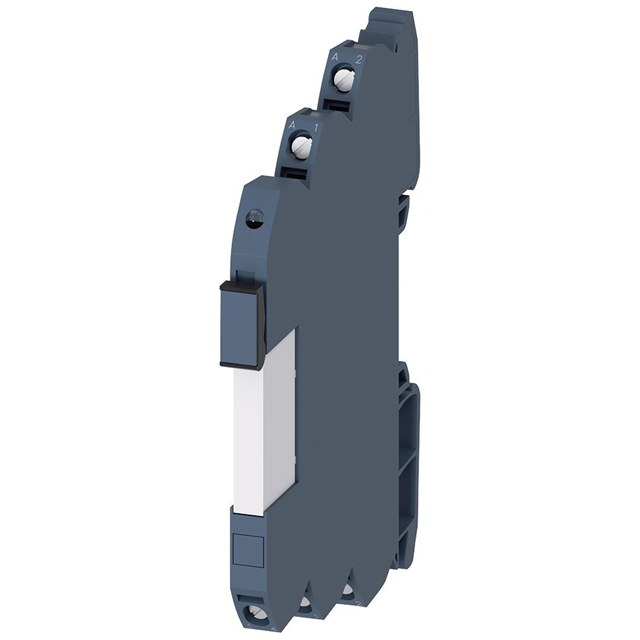

RELAY GEN PURPOSE SPDT 3A 230V
| Part | Switching Voltage [Max] | Coil Type | Load - Max Switching | Contact Form | Features | Contact Rating (Current) | Termination Style | Mounting Type | Approval Agency | Contact Material | Operate Time | Relay Type | Coil Voltage | Coil Voltage | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Screw Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 9 ms | General Purpose | 230 VDC | 230 VAC | 19 ms | -25 °C | 60 °C | |
 Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Spring Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 8 ms | General Purpose | 115 VDC | 17 ms | -25 °C | 60 °C | 115 VAC | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Screw Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 12 ms | General Purpose | 13 ms | -25 °C | 60 °C | 24 VDC | ||
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Spring Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 9 ms | General Purpose | 230 VDC | 230 VAC | 19 ms | -25 °C | 60 °C | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Spring Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 12 ms | General Purpose | 14 ms | -25 °C | 60 °C | 24 VAC | ||
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Screw Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 8 ms | General Purpose | 115 VDC | 17 ms | -25 °C | 60 °C | 115 VAC | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Spring Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 9 ms | General Purpose | 230 VDC | 230 VAC | 19 ms | -25 °C | 60 °C | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Spring Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 8 ms | General Purpose | 115 VDC | 17 ms | -25 °C | 60 °C | 115 VAC | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Screw Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 9 ms | General Purpose | 230 VDC | 230 VAC | 19 ms | -25 °C | 60 °C | |
Siemens | 250 VAC | Non Latching | 750 VA | SPDT (1 Form C) | Lighted Indicator | 3 A | Screw Terminal | DIN Rail | CCC CSA EAC UL | Silver Tin Oxide (AgSnO) | 12 ms | General Purpose | 14 ms | -25 °C | 60 °C | 24 VAC |
