R16140 Series

Catalog

N / SQUARE FLANGE JACK RECEPTACL

Part	Body Material	Ingress Protection	Body Finish	Dielectric Material	Insertion Loss	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Plating	Connector Style	Contact Termination	Fastening Type	Impedance	Housing Color	Number of Ports	Shield Termination	Mounting Feature	Connector Type	Center Contact Material	Frequency - Max [Max]	Mounting Type
Radiall USA, Inc. R161404000W	Brass	IP67 - Dust Tight Waterproof	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 C	-55 C	500	Gold	N Type	Solder Cup	Threaded	50 Ohms	Silver	1	Solder	Flange	Female Socket Jack	Beryllium Copper	11 GHz	Panel Mount
Radiall USA, Inc. R161404C01	Composite	IP67 - Dust Tight Waterproof		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 C	500	Silver	N Type	Solder Cup	Threaded	50 Ohms	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount

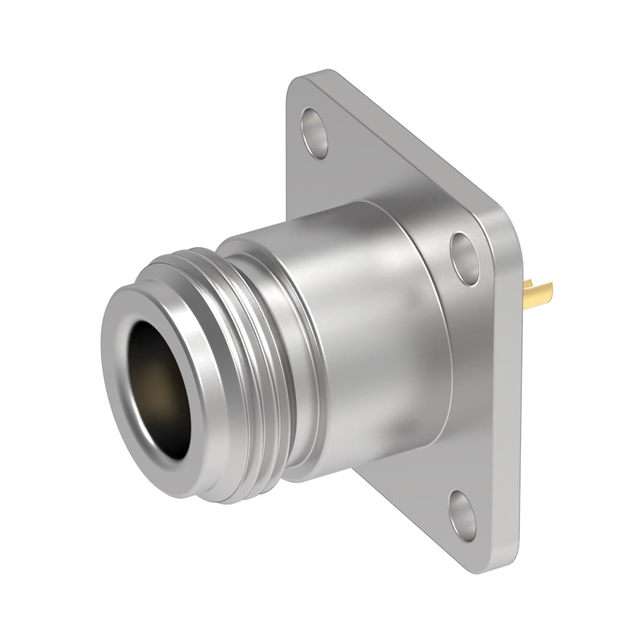

Radiall USA, Inc. R161404000	Brass			Polytetrafluoroethylene (PTFE)		1400 V	155 C	-55 C	500	Gold	N Type	Solder Cup	Threaded	50 Ohms		1	Solder	Flange	Female Socket Jack	Beryllium Copper	11 GHz	Panel Mount
Radiall USA, Inc. R161404450
Radiall USA, Inc. R161404137	Brass	IP67 - Dust Tight Waterproof	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 C	-55 C	500	Silver	N Type	Solder Cup	Threaded	50 Ohms	Silver	1	Solder	Flange	Female Socket Jack	Brass	11 GHz	Panel Mount

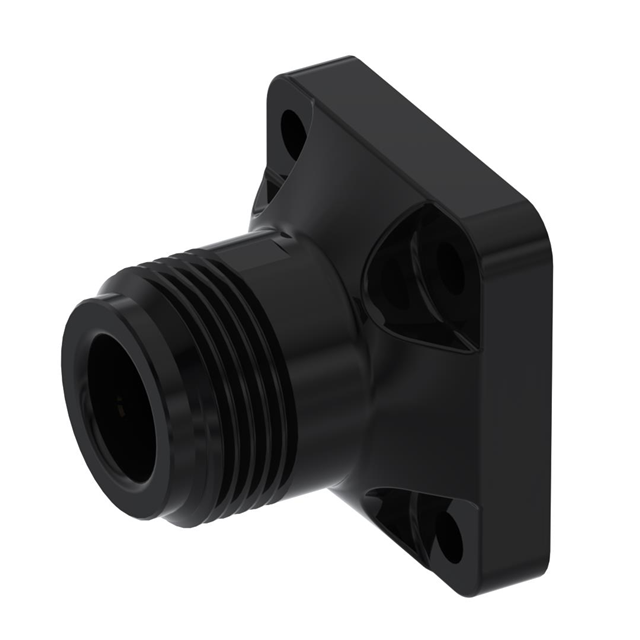

Radiall USA, Inc. R161404C02	Composite	IP67 - Dust Tight Waterproof		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 C	500	Silver	N Type	Solder Cup	Threaded	50 Ohms	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount
Radiall USA, Inc. R161404437
Radiall USA, Inc. R161404C01W	Composite	IP67 - Dust Tight Waterproof		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 C	500	Silver	N Type	Solder Cup	Threaded	50 Ohms	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount
Radiall USA, Inc. R161404137W	Brass	IP67 - Dust Tight Waterproof	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 C	-55 C	500	Silver	N Type	Solder Cup	Threaded	50 Ohms	Silver	1	Solder	Flange	Female Socket Jack	Brass	11 GHz	Panel Mount
