SM99S01VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
TERM BLOCK 1POS SIDE ENTRY SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Material - Plating | Clamp Material - Plating | Mating Orientation | Voltage | Color | Mounting Type | Wire Termination | Number of Levels | Positions Per Level | Current | Wire Gauge [Max] | Wire Gauge [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

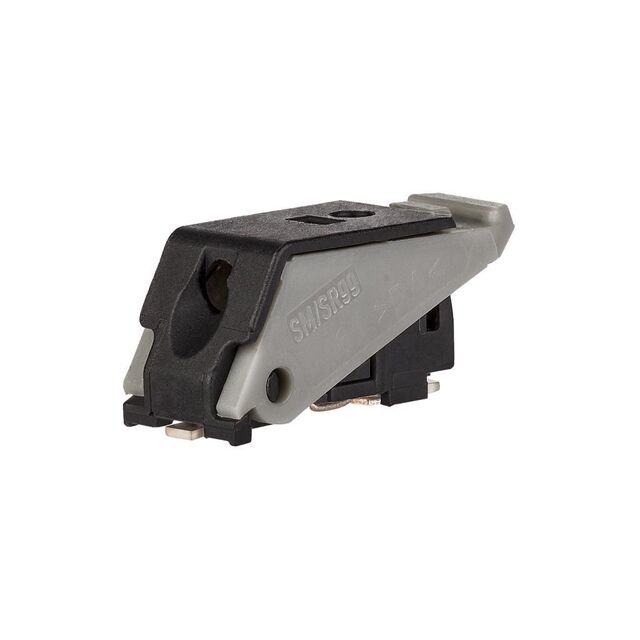

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Gray | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

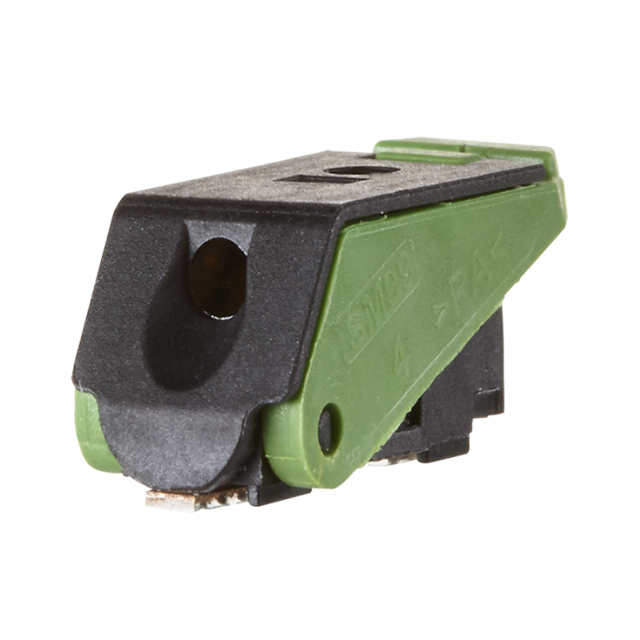

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Green | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

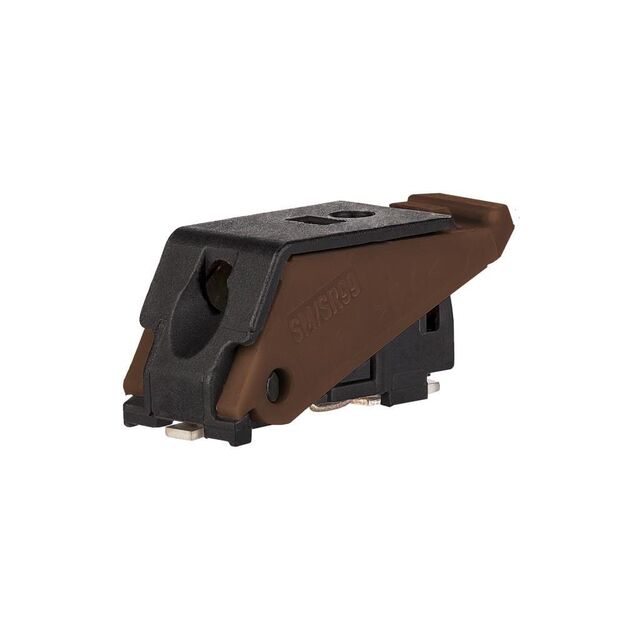

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Brown | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

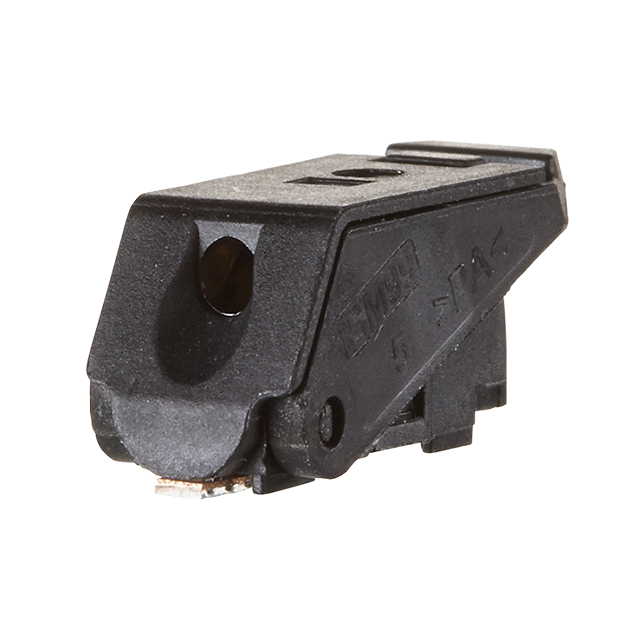

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Black | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

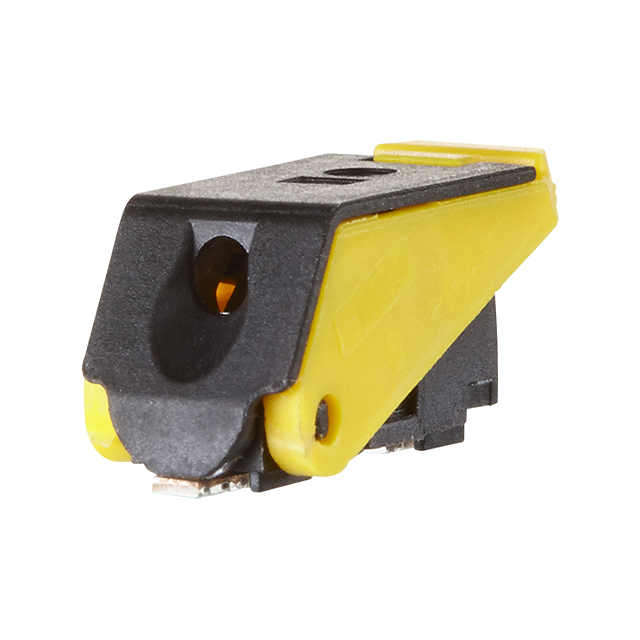

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Yellow | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

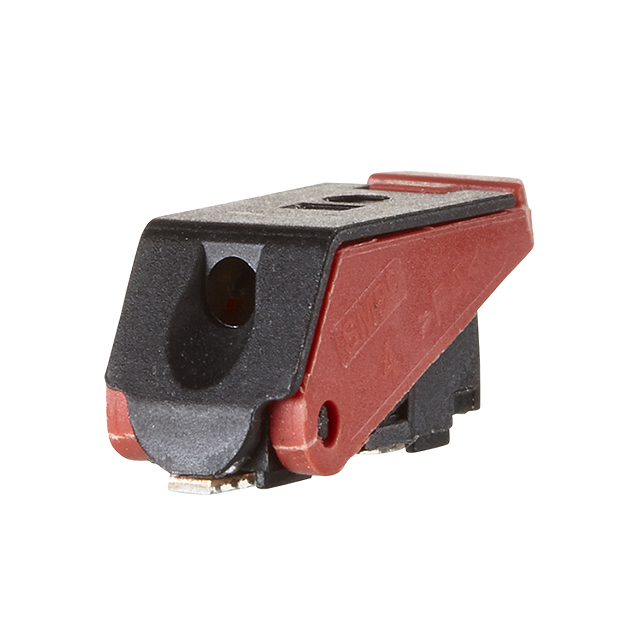

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Red | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |

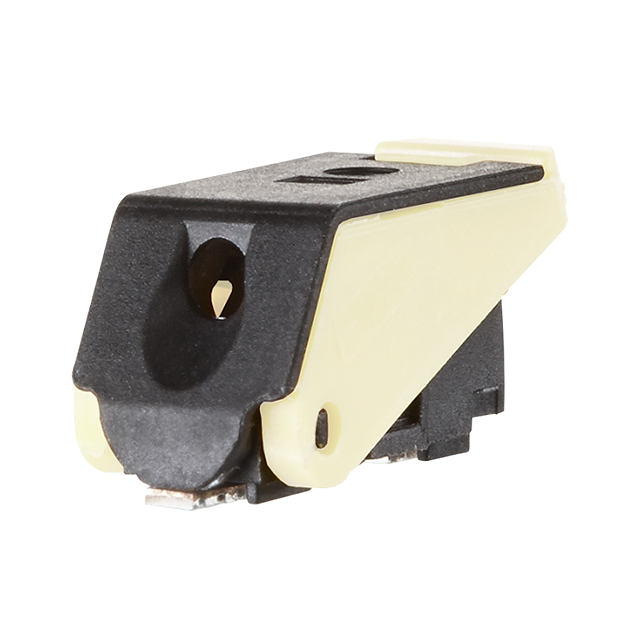

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | White | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated | |

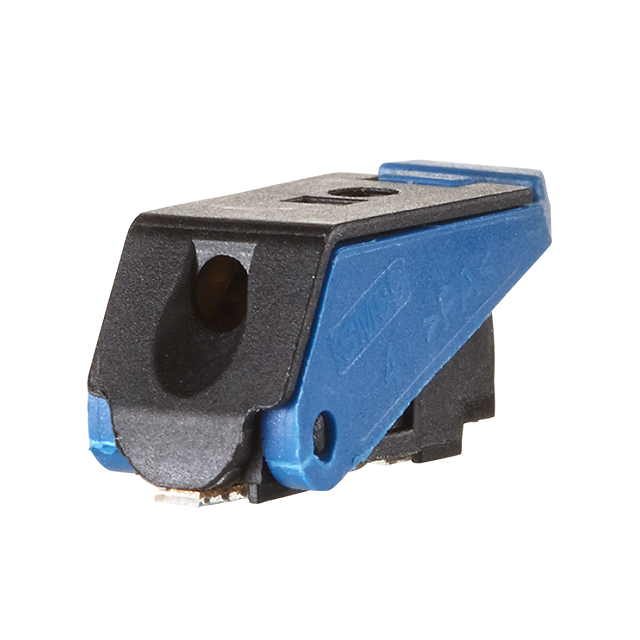

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | Horizontal with Board | 300 VDC | Blue | Surface Mount | Screwless - Spring Cage Tension Clamp | 1 | 1 | 9 A | 24 AWG | 16 AWG | Push Button Actuated |
