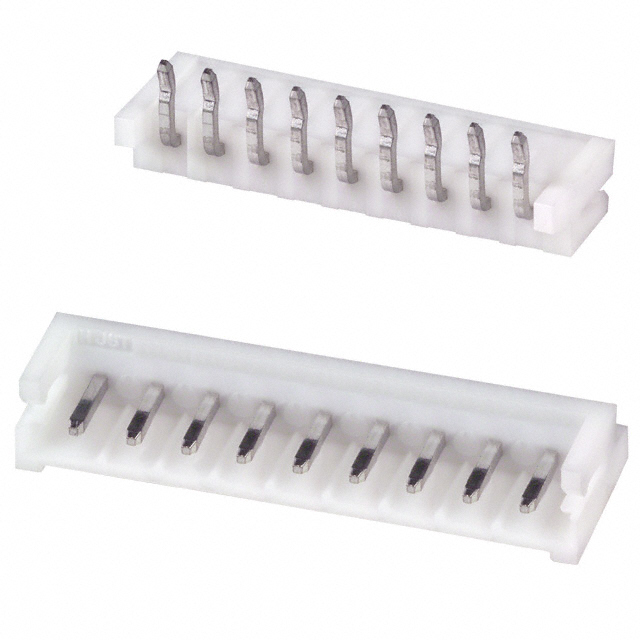

S9B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 9POS 2.5MM
| Part | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Insulation Height | Insulation Height | Contact Shape | Contact Length - Mating | Contact Length - Mating | Connector Type | Shrouding | Termination | Contact Material | Insulation Material | Number of Positions | Number of Rows | Material Flammability Rating | Style | Mounting Type | Fastening Type | Number of Positions Loaded | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | 2.5 mm | 0.098 in | 3 A | 250 V | 0.126 " | 3.2 mm | Male Pin | 0.165 in | 4.2 mm | Square | 4 mm | 0.157 in | Header | Shrouded - 3 Wall | Press-Fit Solder | Brass | Nylon 6/6 Polyamide (PA66) | 9 | 1 | UL94 V-0 | Board to Cable/Wire | Right Angle Through Hole | Latch Lock | All | Natural | 85 °C | -25 °C |
