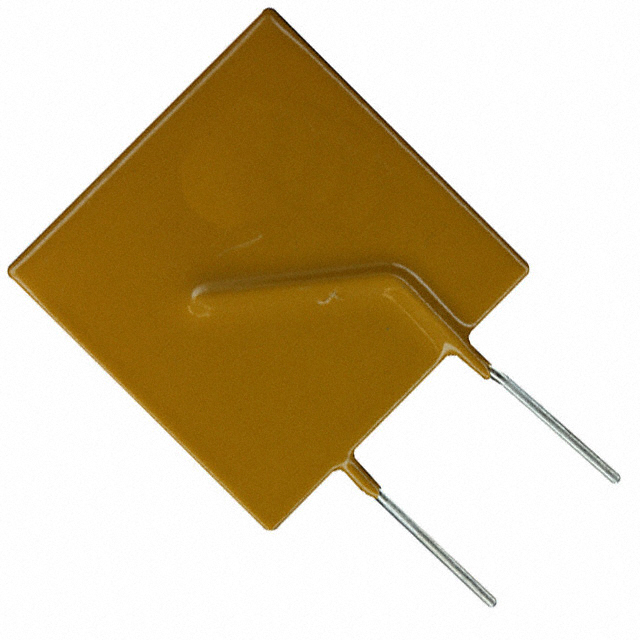

MF-R1100 Series
Manufacturer: Bourns Inc.
Beta
⌘K
PTC RESET FUSE 16V 11A RADIAL
| Part | Approval Agency | Resistance - Initial (Ri) (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Resistance - Post Trip (R1) (Max) [Max] | Mounting Type | Time to Trip | Type | Current - Trip (It) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Hold (Ih) (Max) [Max] | Current - Max [Max] | Voltage - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cURus TUV | 3 mOhms | 85 °C | -40 C | 14 mOhms | Through Hole | 20 s | Polymeric | 22 A | 32.9 mm | 1.295 " | Disc Radial | 0.953 in | 3 mm | 24.2 mm | 0.118 in | 11 A | 100 A | 16 V |
