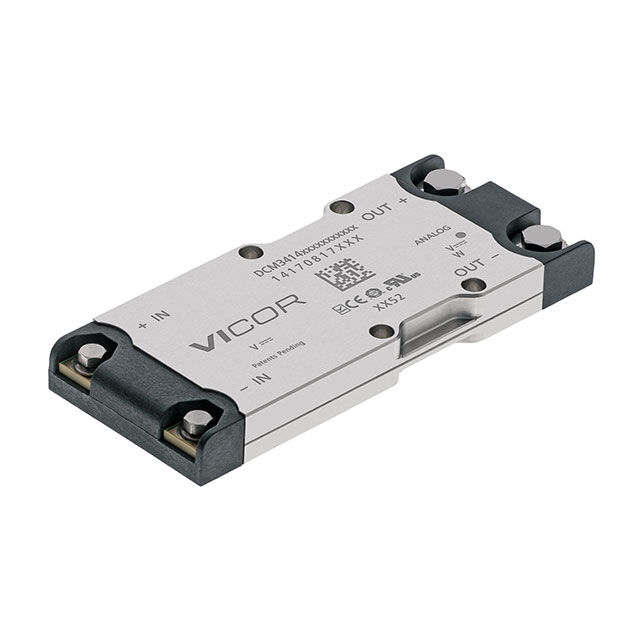

DCM3414 Series

Catalog

DC DC CONVERTER 320W

Part	Voltage - Output 1	Applications	Type	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Mounting Type	Voltage - Isolation	Package / Case	Approval Agency	Power (Watts)	Standard Number
Vicor Corporation DCM3414B50M53C2C05
Vicor Corporation DCM3414B75H06A6T09
Vicor Corporation DCM3414B75H31C2C05	28 V	ITE (Commercial)	Isolated Module	36 V	1	91.8 %	OCP OTP OVP Remote On/Off SCP UVLO	-20 °C	100 °C	75 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	11.43 A	Through Hole	2250 VDC	9-DIP Module
Vicor Corporation DCM3414V50M17C2T01	15 V	ITE (Commercial)	Enclosed	16 V	1	92.2 %		-40 C	100 °C	50 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	21.33 A	Chassis Mount			CE cTUVus	320 W
Vicor Corporation DCM3414V50M31C2M01	28 V	ITE (Commercial)	Enclosed	16 V	1	93.3 %		-55 °C	125 °C	50 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	11.43 A	Chassis Mount	1.5 kV		CE cTUVus cURus	320 W	60950-1
Vicor Corporation DCM3414B50M13C2M09
Vicor Corporation DCM3414V75H13C2T01	12 V	ITE (Commercial)	Enclosed	36 V	1	91.9 %		-40 °C	125 °C	75 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	26.67 A	Chassis Mount	2250 VDC		CE cTUVus cURus	320 W	60950-1
Vicor Corporation DCM3414B50M06A8M05
Vicor Corporation DCM3414V50M26C2T01	24 V	ITE (Commercial)	Enclosed	16 V	1	90.7 %		-40 C	125 °C	50 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	13.33 A	Chassis Mount			CE	320 W
Vicor Corporation DCM3414V50M13C2C01	12 V	ITE (Commercial)	Enclosed	16 V	1	91.5 %		-20 ░C	125 °C	50 V	85.9 mm	0.37 in	35.5 mm	9.3 mm	1.4 in	3.38 in	26.67 A	Chassis Mount			CE	320 W
