833-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 72POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Read Out	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions	Contact Material	Features	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Card Type	Mounting Type	Contact Finish	Color	Number of Positions/Bay/Row	Gender	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]

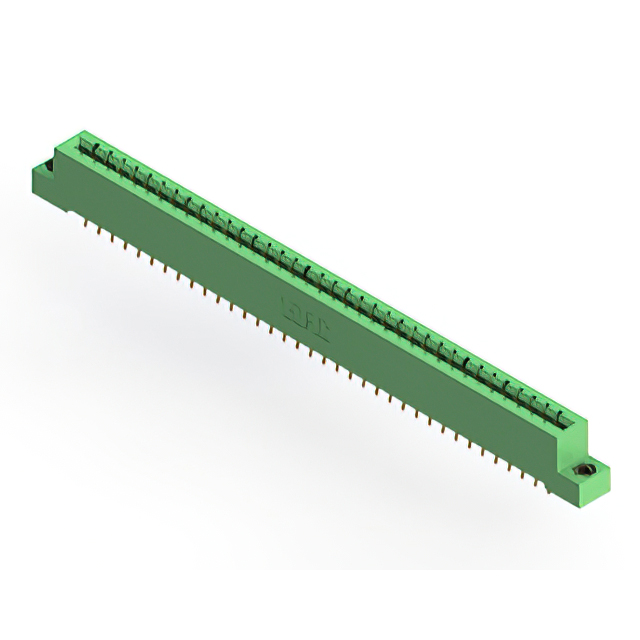

EDAC Inc. 833-072-556-207	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy	Card Extender	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Green	36	Female	Solder	125 °C	-40 C
EDAC Inc. 833-072-542-807	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		M3 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Wire Wrap	125 °C	-40 C
EDAC Inc. 833-072-520-208	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Solder	125 °C	-40 C
EDAC Inc. 833-072-540-202	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Wire Wrap	125 °C	-40 C	3.25 mm	0.128 "
EDAC Inc. 833-072-500-203	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Solder Eyelet(s)	125 °C	-40 C	2.95 mm	0.116 "
EDAC Inc. 833-072-559-202	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Right Angle Through Hole	Gold	Green	36	Female	Solder	125 °C	-40 C	3.25 mm	0.128 "
EDAC Inc. 833-072-521-201	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy			0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Solder	125 °C	-40 C
EDAC Inc. 833-072-523-807	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		M3 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Solder	125 °C	-40 C
EDAC Inc. 833-072-540-201	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy			0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Through Hole	Gold	Green	36	Female	Wire Wrap	125 °C	-40 C
EDAC Inc. 833-072-558-207	Diallyl Phthalate (DAP)	2	Cantilever	Dual	2	0.25 Ám	10 Áin	3.96 mm	0.156 in	72	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Right Angle Through Hole	Gold	Green	36	Female	Solder	125 °C	-40 C
