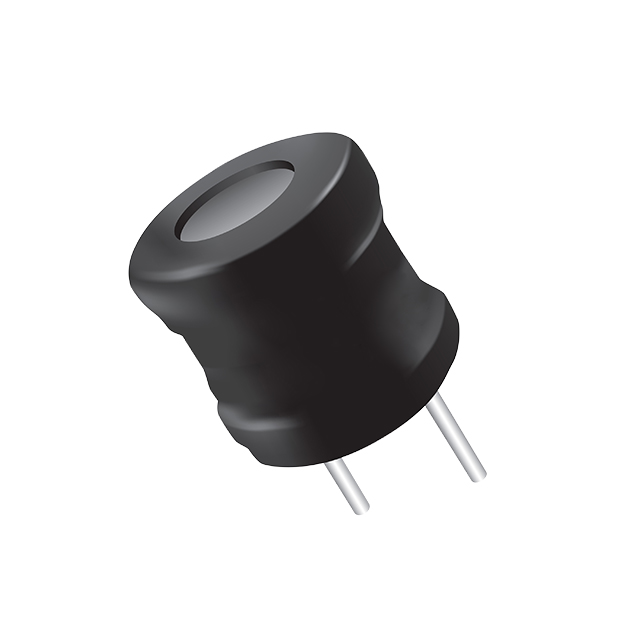

RLB1112 Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND11.5X13.5MM3.3MH5%0.28A400VNON-SHDTH /TAPE & REEL - 13" REEL
| Part | Q @ Freq [custom] | Q @ Freq [custom] | Inductance | Material - Core | Frequency - Self Resonant | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Size / Dimension [diameter] | Size / Dimension [diameter] | Tolerance | Mounting Type | Shielding | Current - Saturation (Isat) | DC Resistance (DCR) | Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 20 | 252 kHz | 3300 µH | Ferrite | 1.1 MHz | 0.28 A | 125 °C | -40 C | 0.531 in | 13.5 mm | 1 kHz | 0.453 in | 11.5 mm | 5 % | Through Hole | Unshielded | 260 mA | 4.9 Ohm | Drum Core Wirewound | Radial Vertical Cylinder |
Bourns Inc. | 20 | 252 kHz | 2.2 mH | Ferrite | 760 kHz | 350 mA | 125 °C | -40 C | 0.531 in | 13.5 mm | 1 kHz | 0.453 in | 11.5 mm | 5 % | Through Hole | Unshielded | 330 mA | 3.2 Ohm | Drum Core Wirewound | Radial Vertical Cylinder |
