18RC2S06 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

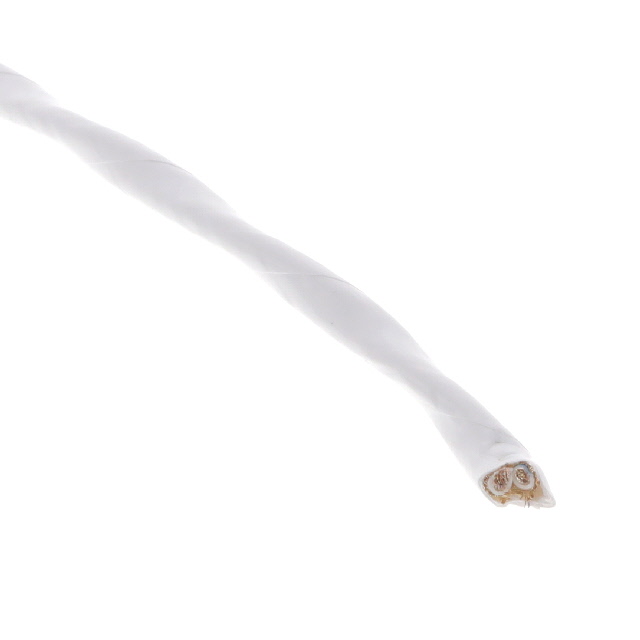

MULTI-CONDUCTOR CABLES 18 AWG 2 CONDUCTOR HIGH-LOW TEMPERATURE CABLE, BRAID 600V 100FT NATURAL
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Number of Conductors | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Silver Coated | 200 °C | -55 C | Polytetrafluoroethylene (PTFE) | 30 AWG | 19 | 18 AWG | 2 | 100 ft | 30.5 m | 0.182 in | 4.62 mm | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | 600 V | Natural | 0.0098 " | 0.25 mm | Multi-Conductor | Braid |
