9432 Series
Manufacturer: Belden Inc.
Beta
⌘K

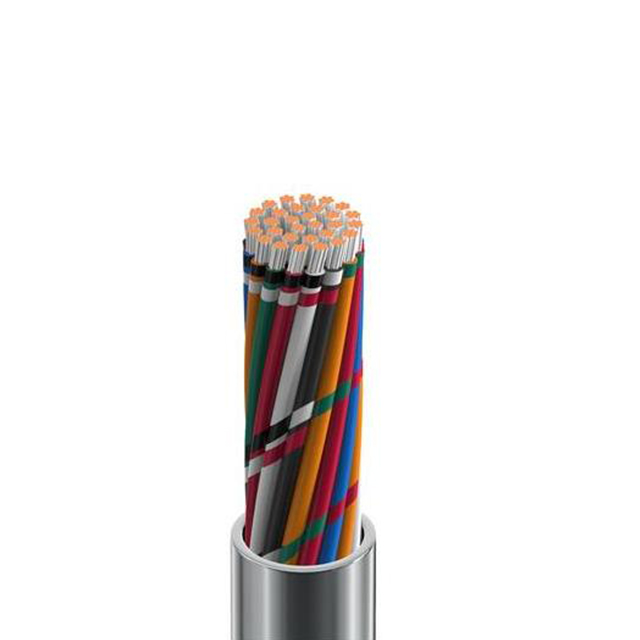

CABLE 30COND 22AWG CHROME
| Part | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Wire Gauge | Length [x] | Length [x] | Usage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 30 | 1.016 mm | 0.04 in | Chrome | Multi-Conductor | 30 AWG | 7 | UL Style 2576 | 22 AWG | 100 ft | 30.5 m | Audio Control Instrumentation | Copper Tinned | 10.16 mm | 0.4 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C |
