SBH21 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 68POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Shrouding	Mounting Type	Termination	Contact Finish - Mating	Contact Shape	Insulation Material	Style	Connector Type	Number of Positions	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Features	Number of Rows [custom]	Contact Finish - Post	Insulation Color	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights	Insulation Height	Insulation Height
Sullins Connector Solutions SBH21-NBPN-D34-RA-BK	Flash	Flash	0.11 in	2.79 mm	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	68 positions	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black	0.213 "	5.4 mm
Sullins Connector Solutions SBH21-NBPN-D34-SM-BK	Flash	Flash			Shrouded - 4 Wall	Surface Mount	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	68 positions	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	5.6 mm	0.22 in

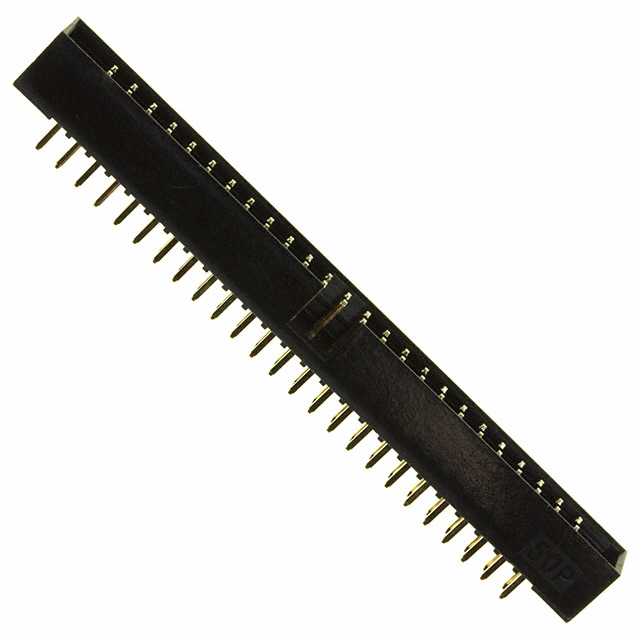

Sullins Connector Solutions SBH21-NBPN-D25-ST-BK	Flash	Flash	0.11 in	2.79 mm	Shrouded - 4 Wall	Through Hole	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	50	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 7.05 mm 10.45 mm 14.35 mm	5.6 mm	0.22 in
Sullins Connector Solutions SBH21-NBPN-D18-RA-BK	Flash	Flash	0.11 in	2.79 mm	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	36	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black	0.213 "	5.4 mm

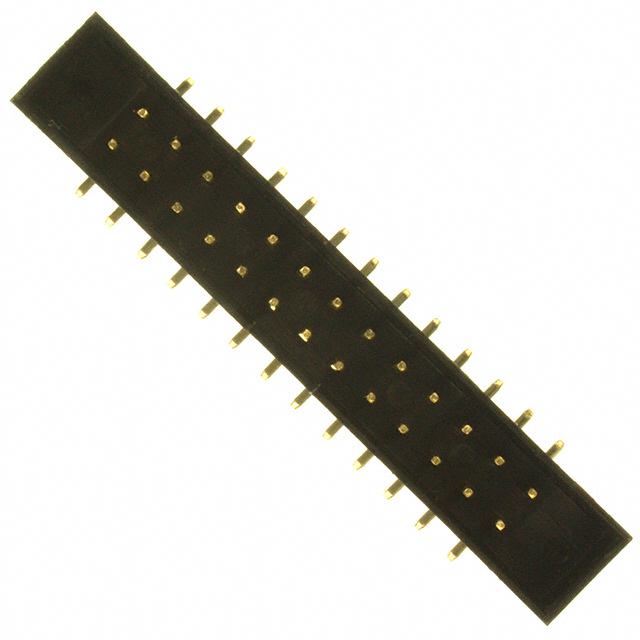

Sullins Connector Solutions SBH21-NBPN-D13-SM-BK	Flash	Flash			Shrouded - 4 Wall	Surface Mount	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	26	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	5.6 mm	0.22 in
Sullins Connector Solutions SBH21-NBPN-D14-SM-BK	Flash	Flash			Shrouded - 4 Wall	Surface Mount	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	28	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	5.6 mm	0.22 in
Sullins Connector Solutions SBH21-NBPN-D11-RA-BK	Flash	Flash	0.11 in	2.79 mm	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	22	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black	0.213 "	5.4 mm
Sullins Connector Solutions SBH21-NBPN-D16-SM-BK	Flash	Flash			Shrouded - 4 Wall	Surface Mount	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header		2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	5.6 mm	0.22 in
Sullins Connector Solutions SBH21-NBPN-D25-SM-BK-M81RC	Flash	Flash			Shrouded - 4 Wall	Surface Mount	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	50	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black			6 mm 7 mm 8.4 mm 11.8 mm 15.7 mm	5.6 mm	0.22 in

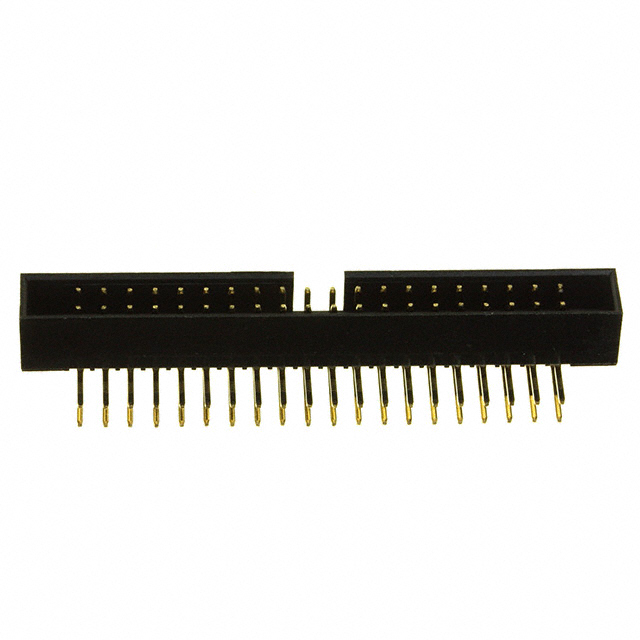

Sullins Connector Solutions SBH21-NBPN-D20-RA-BK	Flash	Flash	0.11 in	2.79 mm	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Gold	Square	Nylon Polyamide (PA)	Board to Board Cable	Header	40	2 A	0.079 "	2 mm	Brass	UL94 V-0	All	-40 C	105 ░C	Push-Pull	2 mm	0.079 in	Male Pin	Keying Slot	2	Gold	Black	0.213 "	5.4 mm
