PE4563 Series
Manufacturer: Pasternack
Beta
⌘K

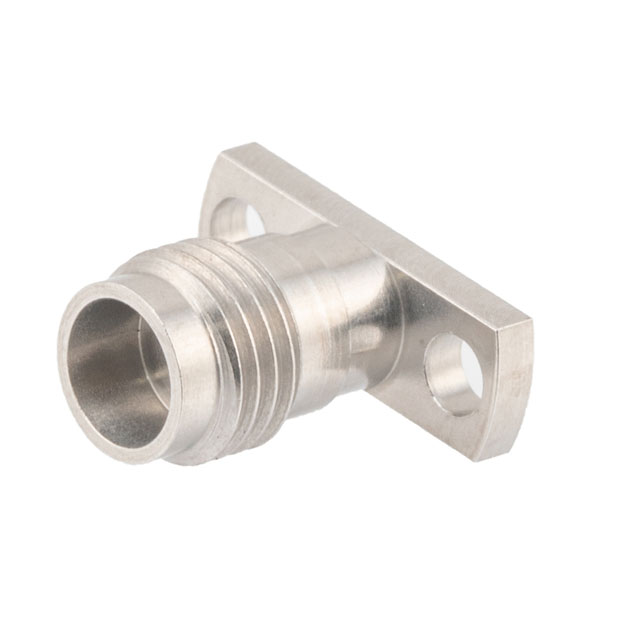

1.85(F) FLD RPL 2HOLE 0.009" PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Dielectric Material | Center Contact Plating | Connector Style | Mounting Feature | Features | Fastening Type | Frequency - Max [Max] | Shield Termination | Housing Color | Center Contact Material | Number of Ports | Connector Type | Contact Termination | Impedance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | -40 C | 165 °C | Stainless Steel | 500 | Polyetherimide (PEI) | Gold | 1.85 mm | Flange | Field Replaceable For Hermetically Sealed Pin | Threaded | 67 GHz | Screw | Silver | Beryllium Copper | 1 | Receptacle Female Socket | Compression | 50 Ohms | Panel Mount |
