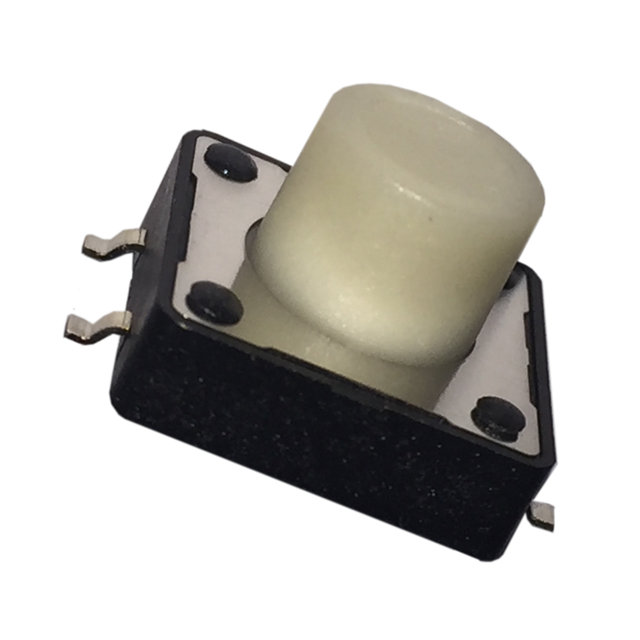

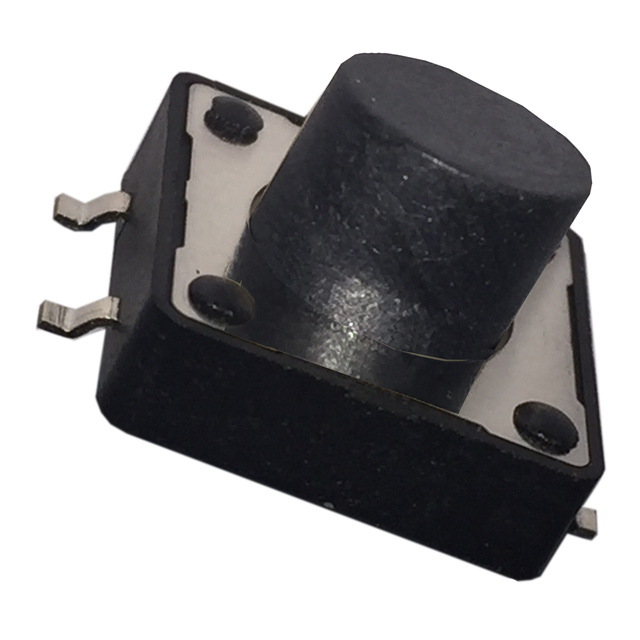

224AMV Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Mounting Type | Actuator Orientation | Termination Style | Contact Rating @ Voltage | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Circuit | Operating Force | Switch Function | Actuator Type | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 500000 Cycles | 0.3 mm | Surface Mount | Top Actuated | Gull Wing | 0.05 A 12 VDC | 12 mm | 12 mm | 85 °C | -40 C | Non-Illuminated | SPST-NO | 160 gf | Off-Mom | Standard | 8.5 mm |
 CTS Electrocomponents | 300000 Cycles | 0.3 mm | Surface Mount | Top Actuated | Gull Wing | 0.05 A 12 VDC | 12 mm | 12 mm | 85 °C | -40 C | Non-Illuminated | SPST-NO | 260 gf | Off-Mom | Standard | 8.5 mm |
